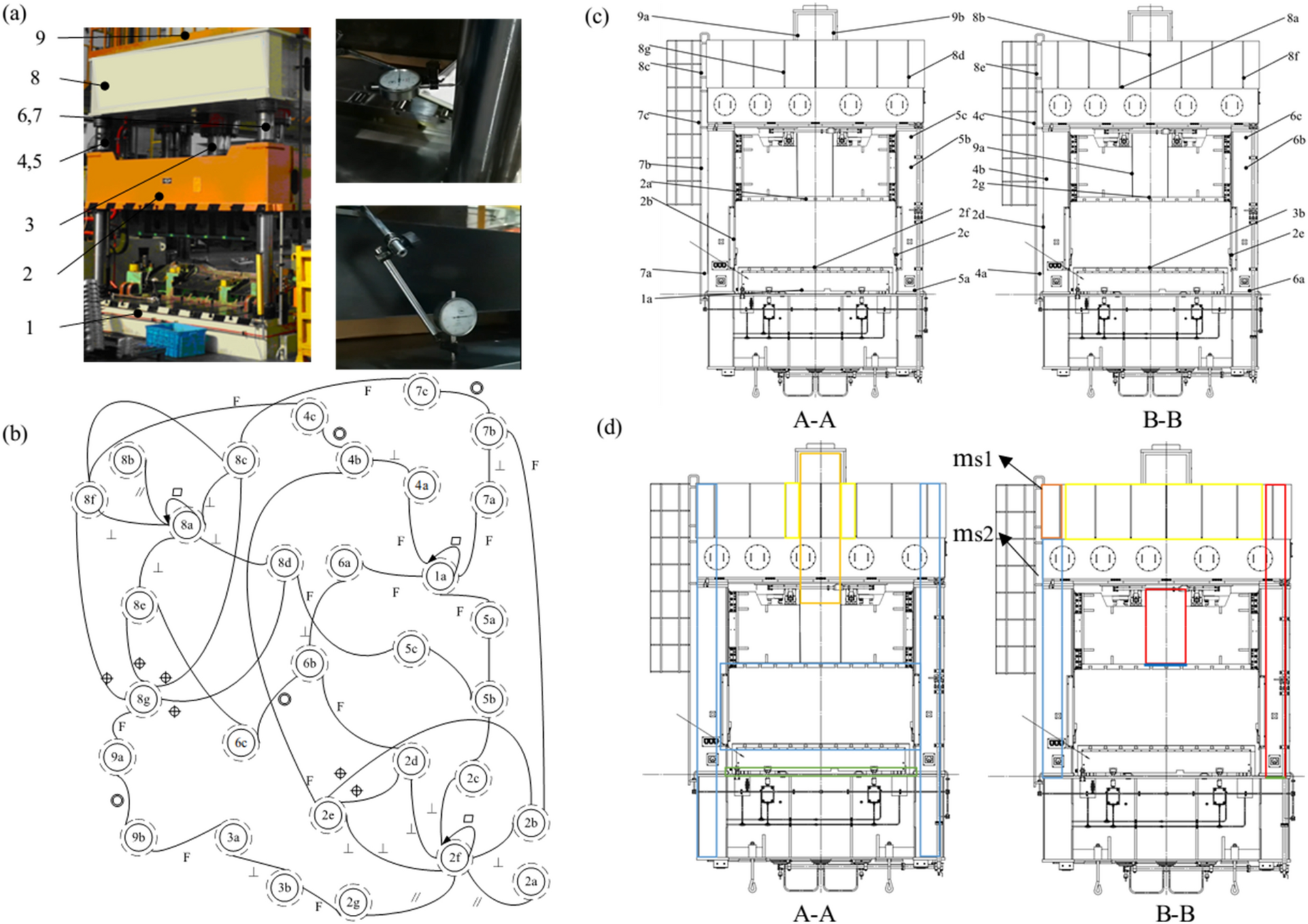

Case study: (a) Schematic diagram of the four-column hydraulic press to be repaired and the deviation collection on site, (b) feature graph of four-column hydraulic equipment, (c) simplified three-dimensional hydraulic equipment assembly and node definition, (d) all node labels of four-column hydraulic press represented in 5 colors.
