Figure 1

From: Ultra-wide-band millimeter-wave generator using spin torque oscillator with strong interlayer exchange couplings

Figure 1

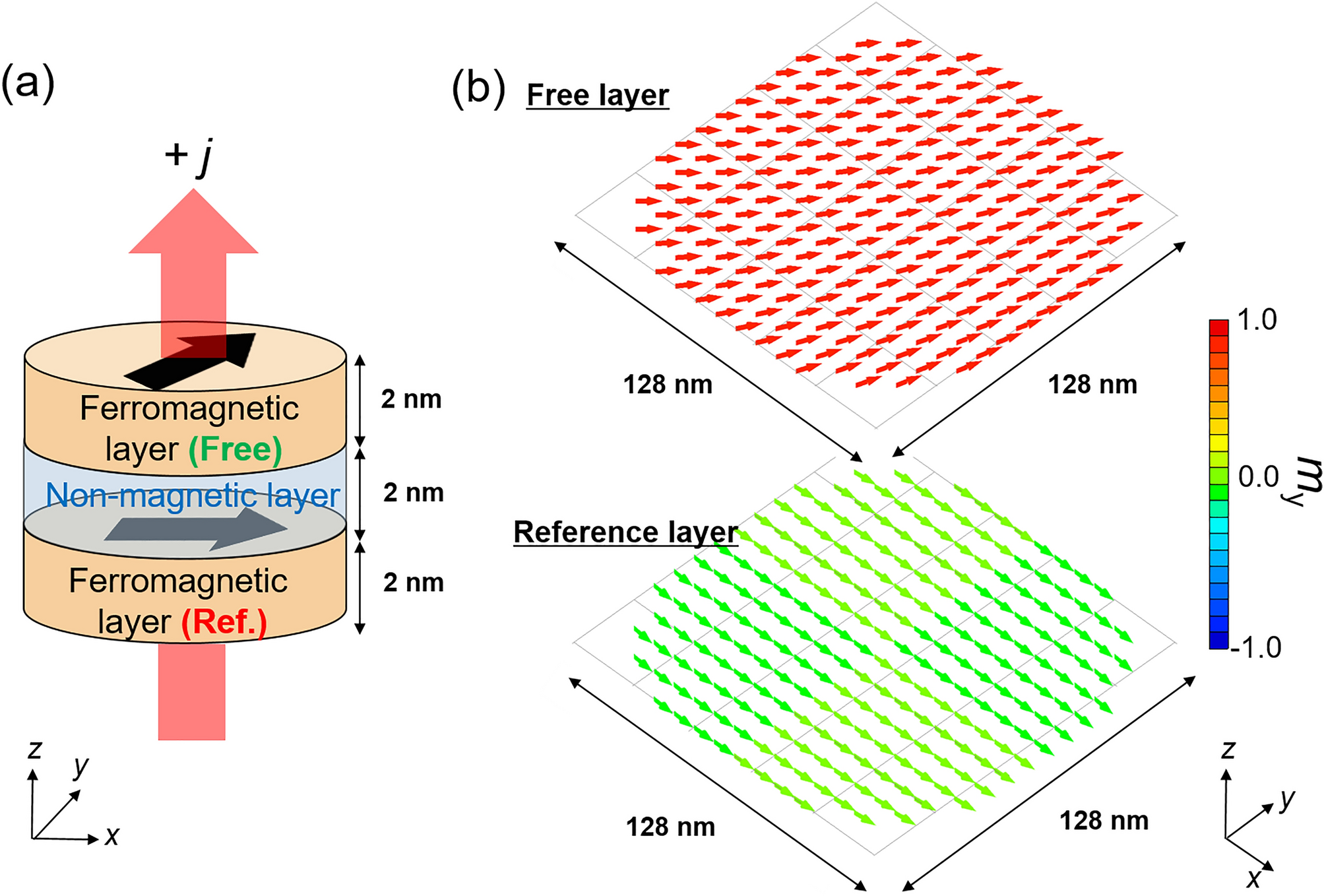

(a) Schematic illustration of FM/NM/FM trilayer. (b) Equilibrium magnetization state in trilayer magnet with \(\left({J}_{1},{J}_{2}\right)=(0.6,-0.6)\) mJ/m2. The arrows indicate the magnetic moment directions and the colors indicate the y-direction magnetization components. The arrows were enlarged using average magnetic vector of \(4\times 4\) square prisms.
