Figure 13
From: Experimental and simulation study on aluminium alloy piston based on thermal barrier coating

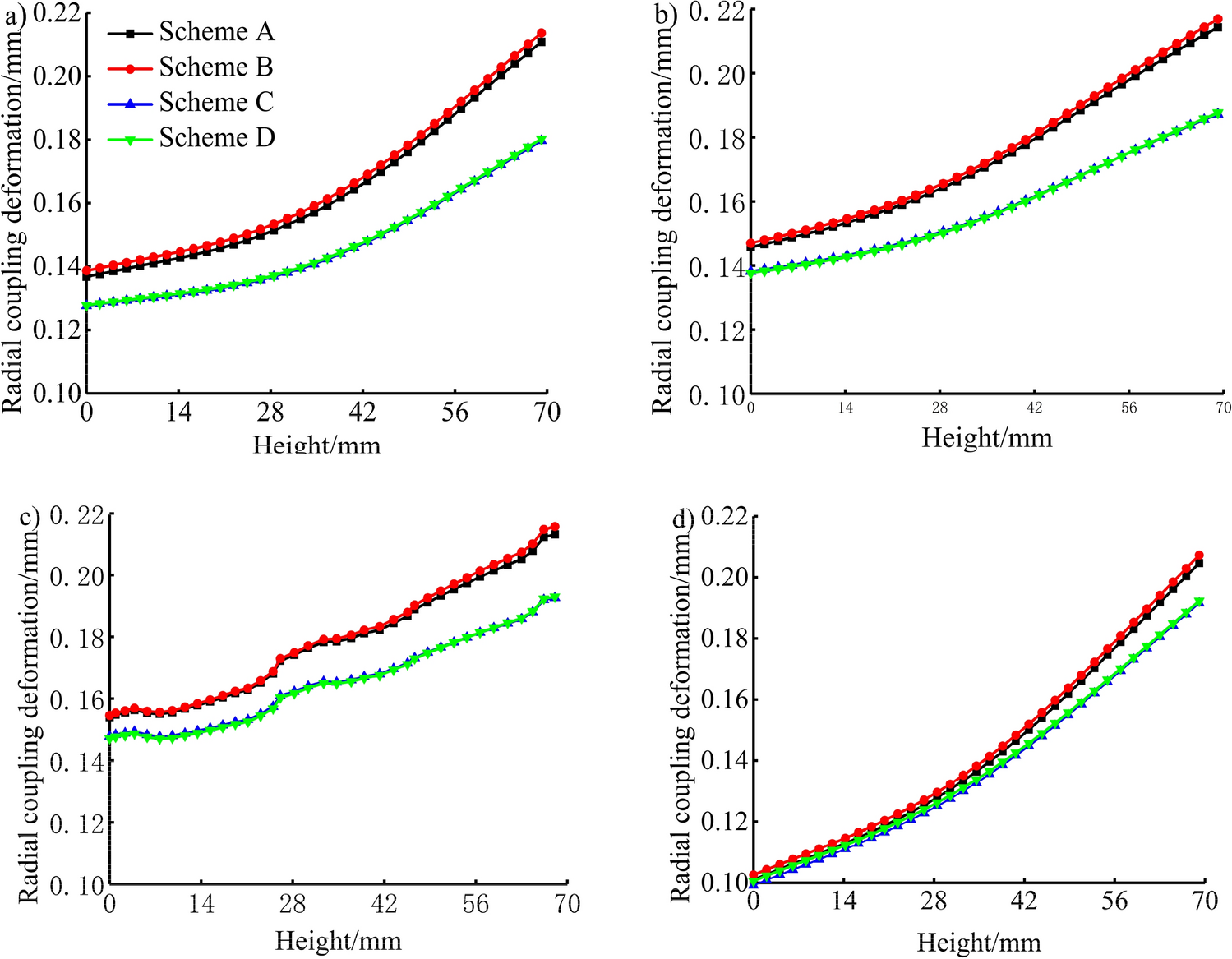

Radial coupling deformation in the axial direction of (a) 0° of the piston skirt, (b) 30° of the piston skirt, (c) 60° of the piston skirt and (d) 180° of the piston skirt.
