Figure 4
From: Experimental study of cavitating flow around a NACA 0012 hydrofoil in a slit channel

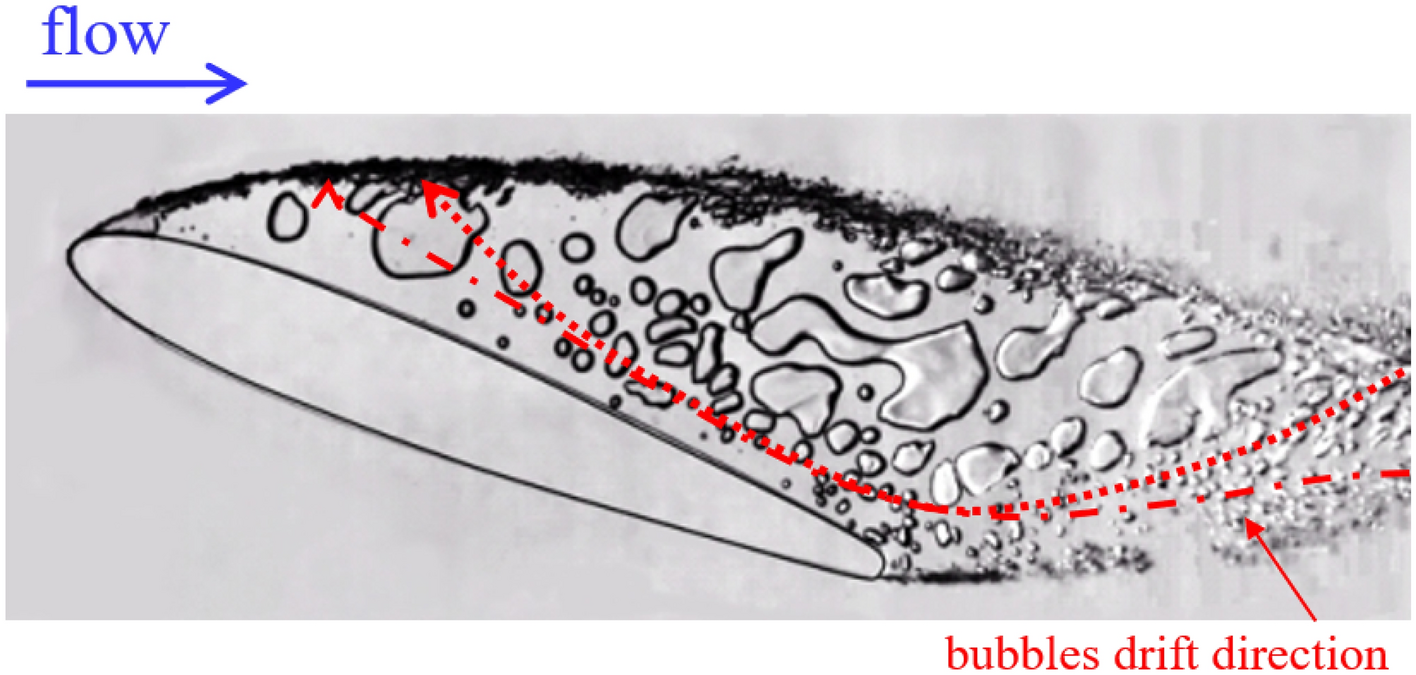

Supercavitating foil. A reverse motion to foil leading edge of the water–vapor mixture phase occurred within the cavity. Re = 1·106. σ = 2.44.
