Figure 1
From: Author Correction: Coherent photonic Terahertz transmitters compatible with direct comb modulation

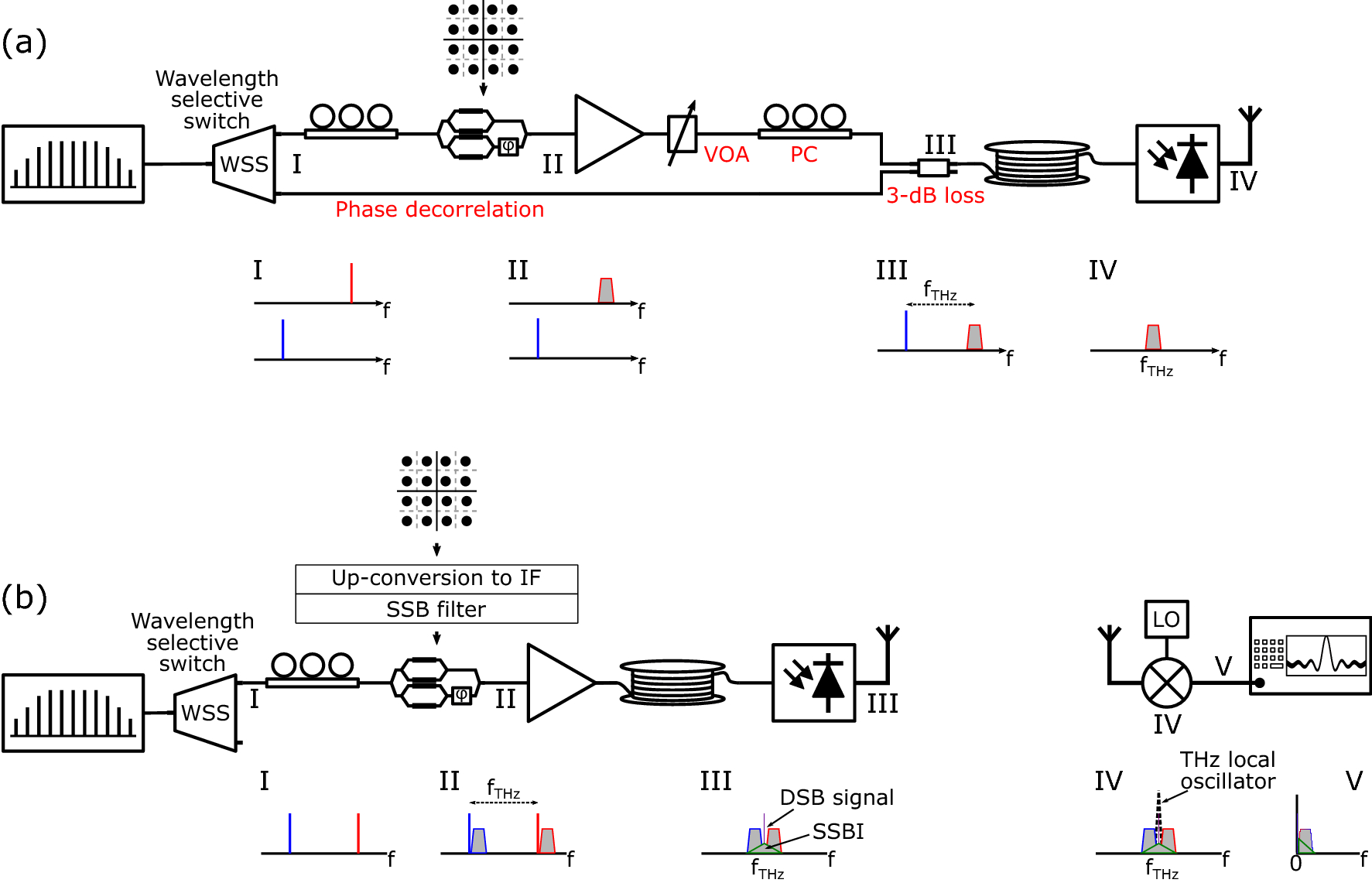

THz transmitters: (a) heterodyne transmitter, (b) proposed single-path THz transmitter with SSB-C optical modulation and DSB receiver. SSB-C: single sideband with carrier, DSB: double sideband, IF: intermediate frequency, SSBI: signal-signal beat interference.
