From: Adipocyte differentiation between obese and lean conditions depends on changes in miRNA expression

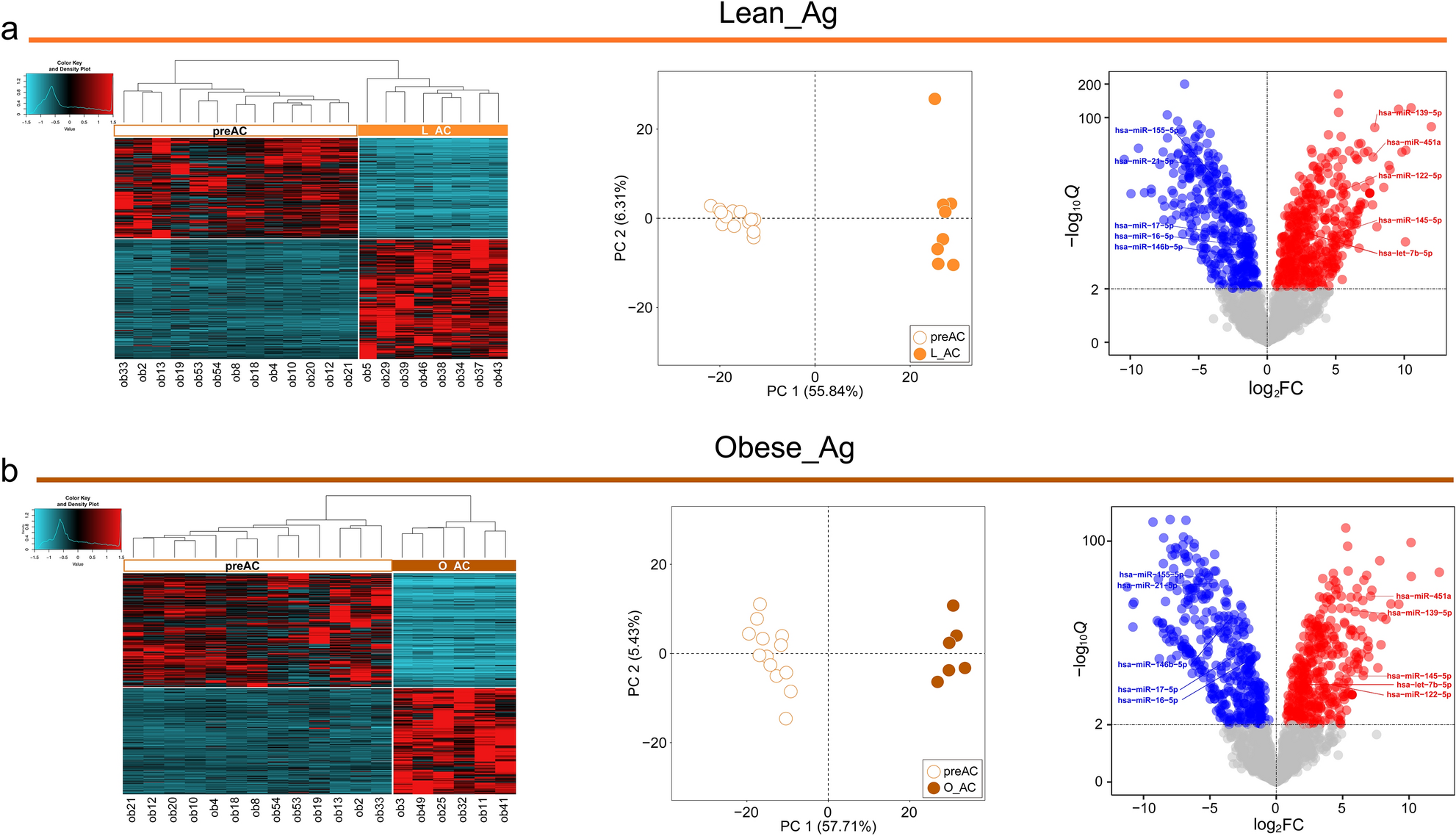

Expression patterns of DEMs detected in L_Ag and O_Ag. (a) (left) Heatmap for Z score scaled expression patterns of DEMs identified in L_Ag, (middle) PCA of preACs and L_ACs, (right) Volcano plot representing the differential expression of miRNAs in L_ACs compared to preACs. The details of the heatmap, PCA plot, and volcano plot are the same as in Fig. 1a–c, respectively. (b) (left) Same as the left panel of (a) but for O_Ag, (middle) Same as the middle panel of (a) but for preACs and O_ACs, (right) Same as the right panel of (a) but for preACs and O_ACs.
