Figure 6

From: Chronic social defeat stress increases the amounts of 12-lipoxygenase lipid metabolites in the nucleus accumbens of stress-resilient mice

Figure 6

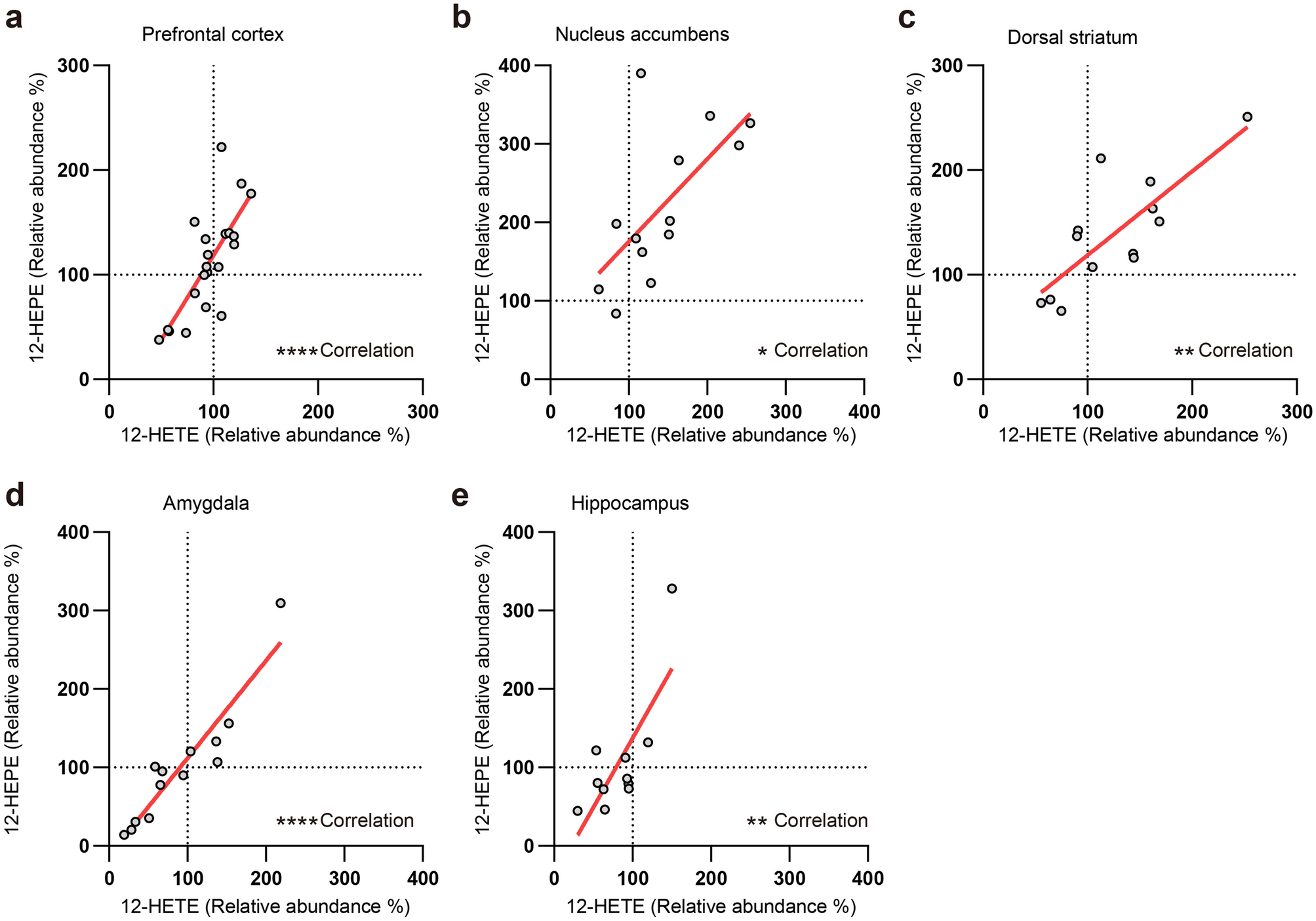

The amounts of 12-HETE and 12-HEPE were positively correlated in multiple brain regions after chronic social defeat stress. The relationship between the amounts of 12-HETE and 12-HEPE in the prefrontal cortex (a), the nucleus accumbens (b), the dorsal striatum (c), the amygdala (d), and the hippocampus (e) after chronic social defeat stress are shown. The values of stress-susceptible mice and stress-resilient mice were combined for this analysis. Circles represent the values of individual samples, and red lines indicate regression lines. *P < 0.05, **P < 0.01, ****P < 0.0001 for significant correlation by Pearson’s correlation test.
