Figure 6

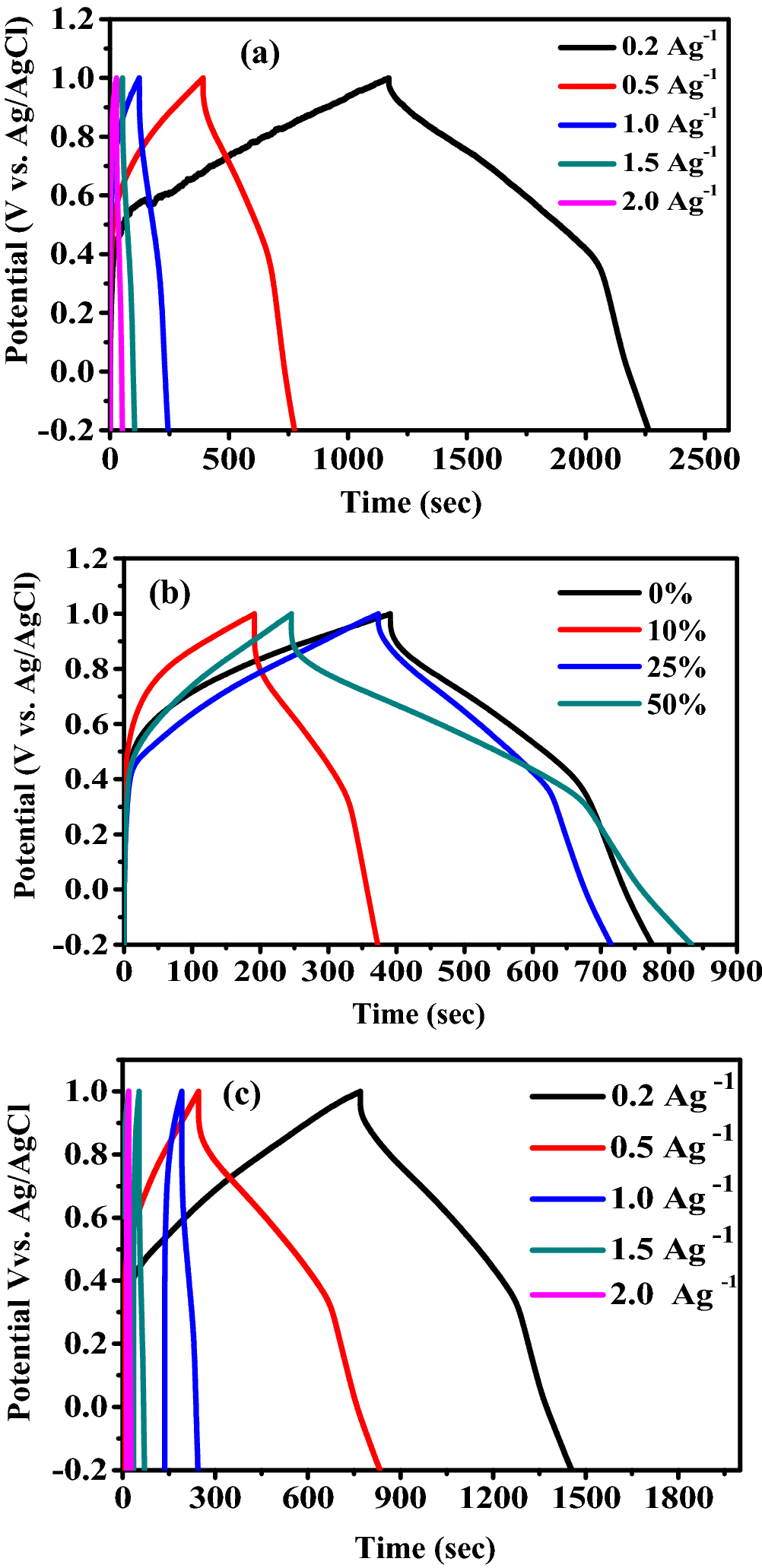

(a) GCD curves of P3HT at different current densities, (b) GCD curves of P3HT/SWCNTs electrodes with different SWCNTs ratios at 0.5 Ag−1 and (c) GCD curves of P3HT/50% SWCNTs at different current densities.
Figure 6 | Scientific Reports
(a) GCD curves of P3HT at different current densities, (b) GCD curves of P3HT/SWCNTs electrodes with different SWCNTs ratios at 0.5 Ag−1 and (c) GCD curves of P3HT/50% SWCNTs at different current densities.
