From: Crystal structure of potato 14-3-3 protein St14f revealed the importance of helix I in StFDL1 recognition

Figure 2

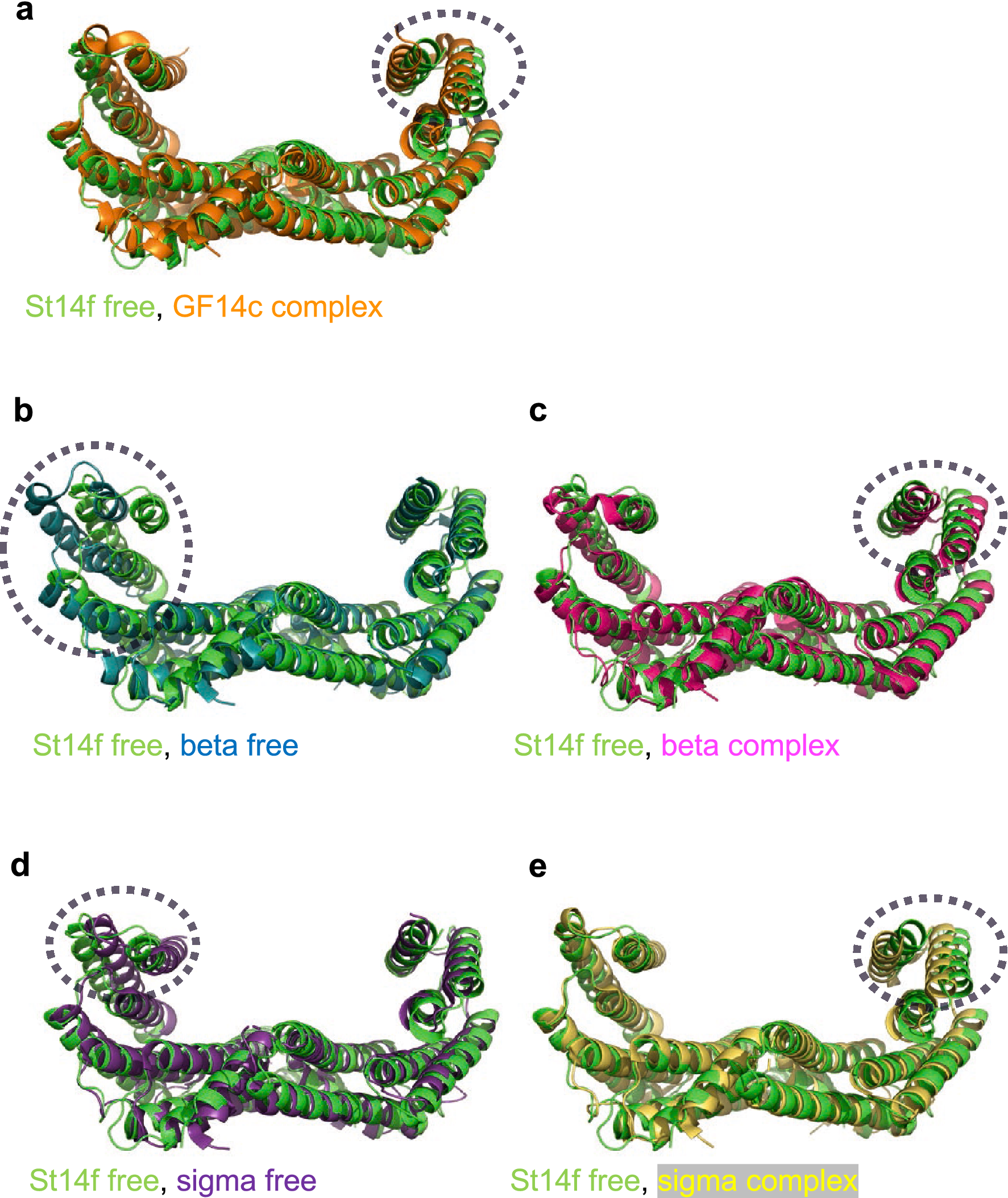

Superposition between the St14f free form (chain AA, green) and other 14-3-3 protein dimers. (a) Rice GF14c complex form (orange) reported in PDB ID 3axy, (b) human 14-3-3 beta free form (blue) reported in PDB ID 2bq0, (c) human 14-3-3 beta complex form (magenta) reported in PDB ID 2c23, (d) human 14-3-3 sigma free form (purple) reported in PDB ID 1yz5, (e) human 14-3-3 sigma complex form (yellow) reported in PDB ID 1ywt. Figures are prepared by PyMol 2.6 (http://www.pymol.org/pymol)42.
