Figure 5

From: High B-value diffusion tensor imaging for early detection of hippocampal microstructural alteration in a mouse model of multiple sclerosis

Figure 5

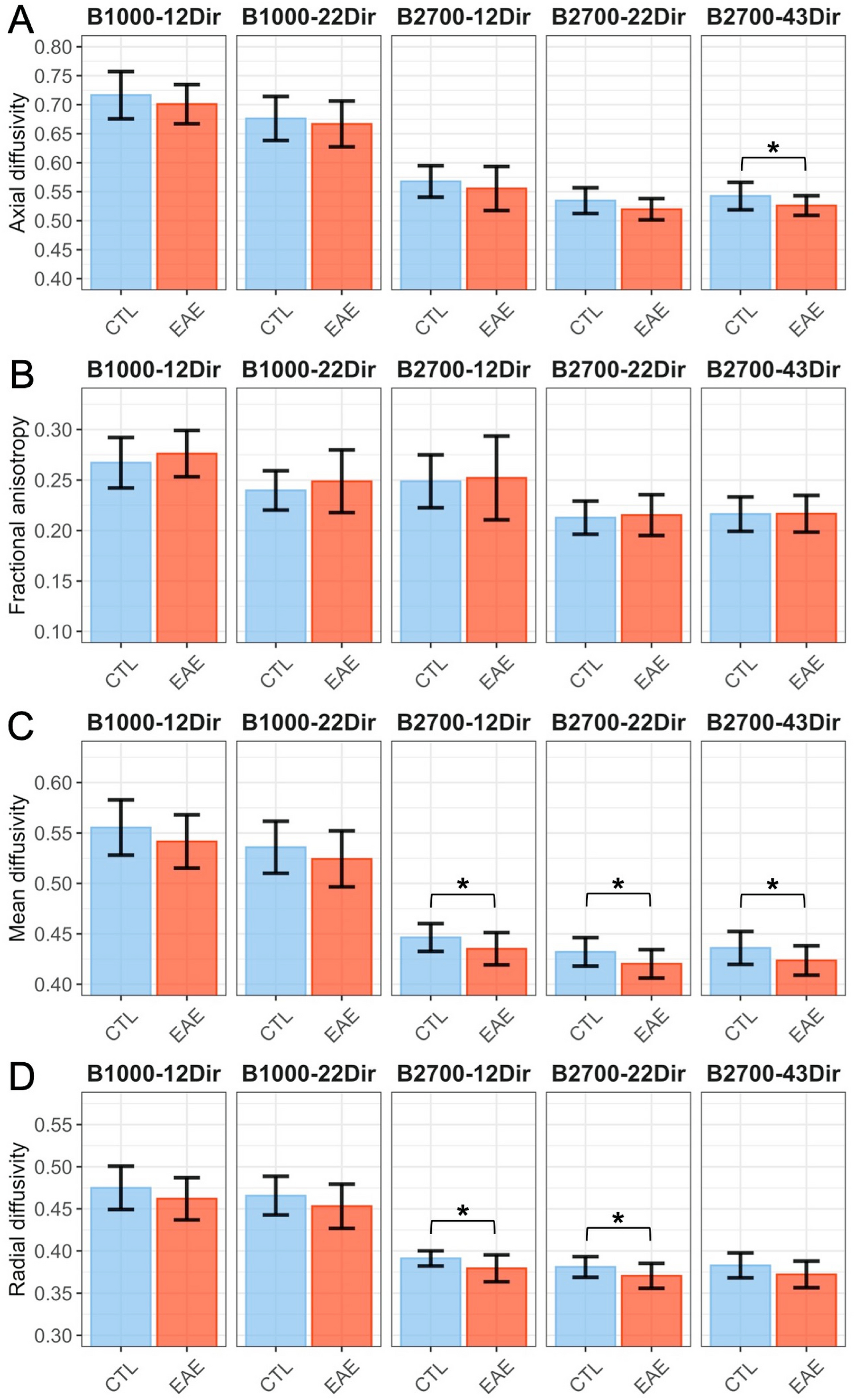

Comparisons between the diffusion tensor imaging (DTI) metrics from the five datasets in the molecular layer of control healthy mice (CTL) versus the mouse model of multiple sclerosis (experimental autoimmune encephalomyelitis [EAE]): (A) axial diffusivity, (B) fractional anisotropy, (C) mean diffusivity, (D) radial diffusivity. Diffusivities are expressed in μm2.ms−1. *P < 0.05. B b-value, Dir number of diffusion gradient directions.
