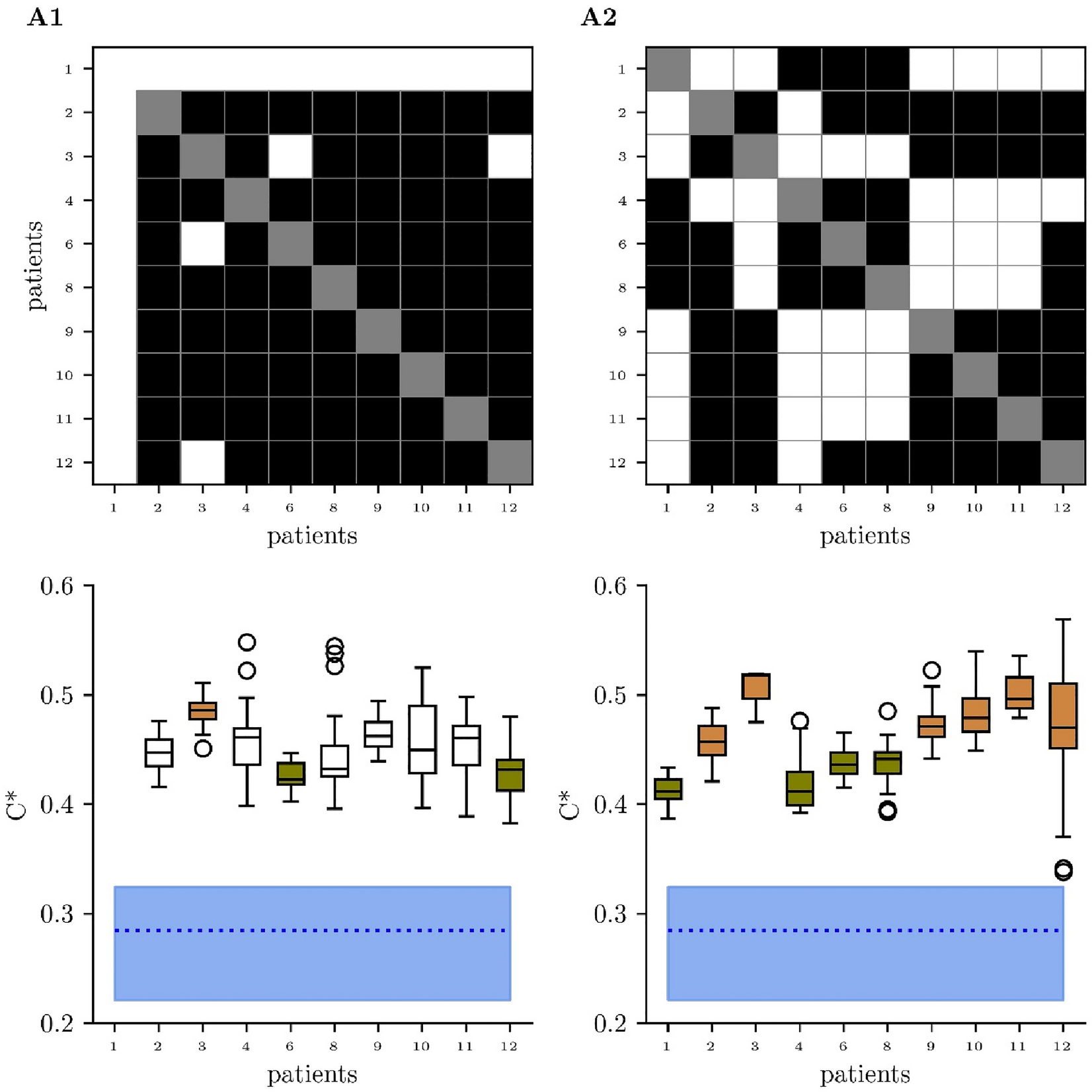

Figure 4

Results of between-patient comparisons (Scheffé tests; top) and distributions of age-corrected average clustering coefficients C* (bottom) at assessments (A1,A2). White rectangles indicate significant differences (p < 0.05). Regarding the distributions of C*, bottom and top of a box are the first and third quartiles, and the black band is the median of the distribution, respectively. The ends of the whiskers represent the interquartile range of the data. Outliers are marked by an o-sign. Blue dotted lines and shaded areas indicate median and range of age-corrected average clustering coefficients C* of healthy controls. At assessment (A1), C* of patient 3 (orange) differs significantly from the values of patients 6 and 12 (green). At (A2), C* of patients 1, 4, 6, and 8 (green) differ significantly from the values of patients 2, 3, 9, 10, 11, and 12 (orange). The EEG recording of patient 1 during B1 at A1 had to be excluded from the analyses because of too many artefacts.
