Figure 6

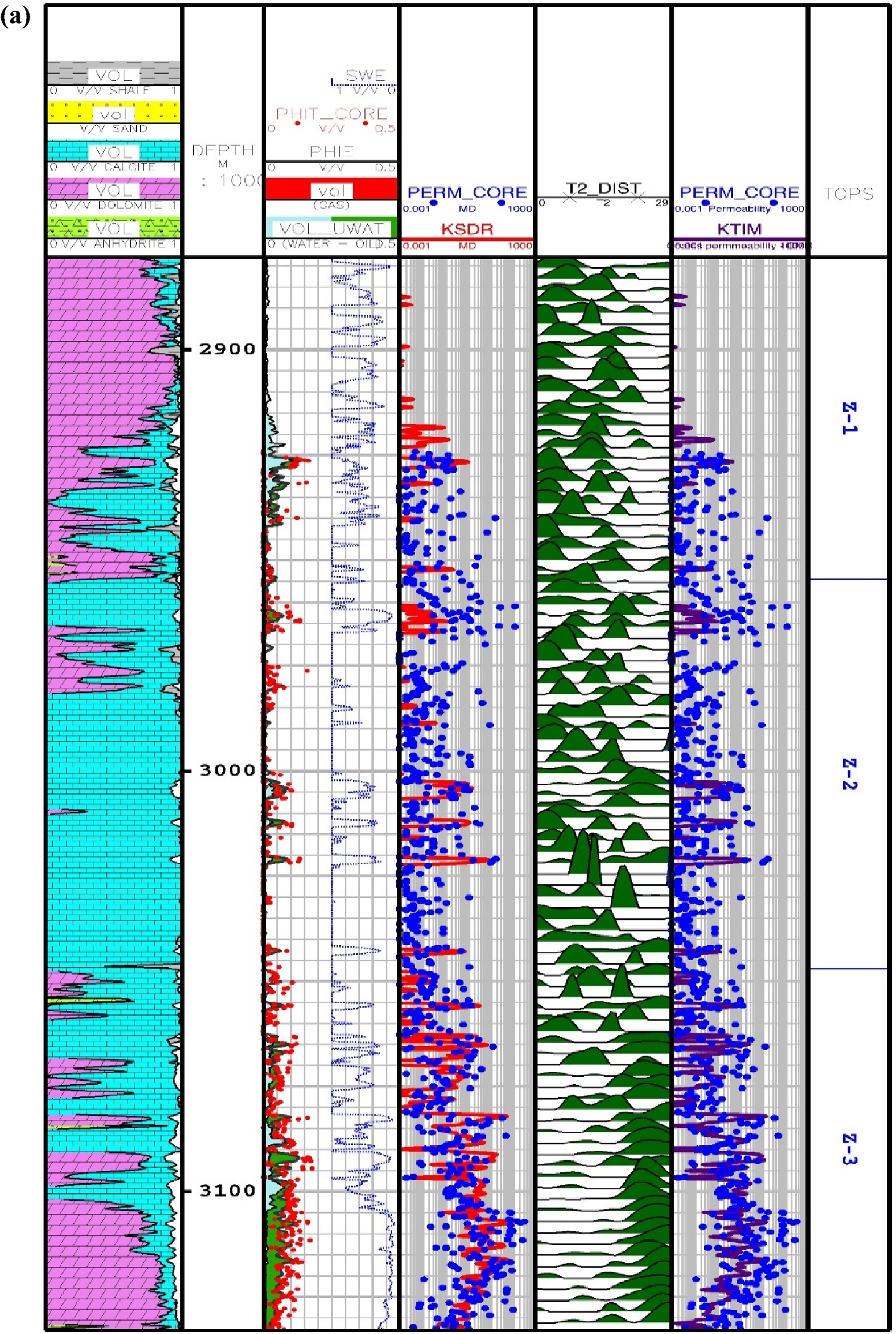

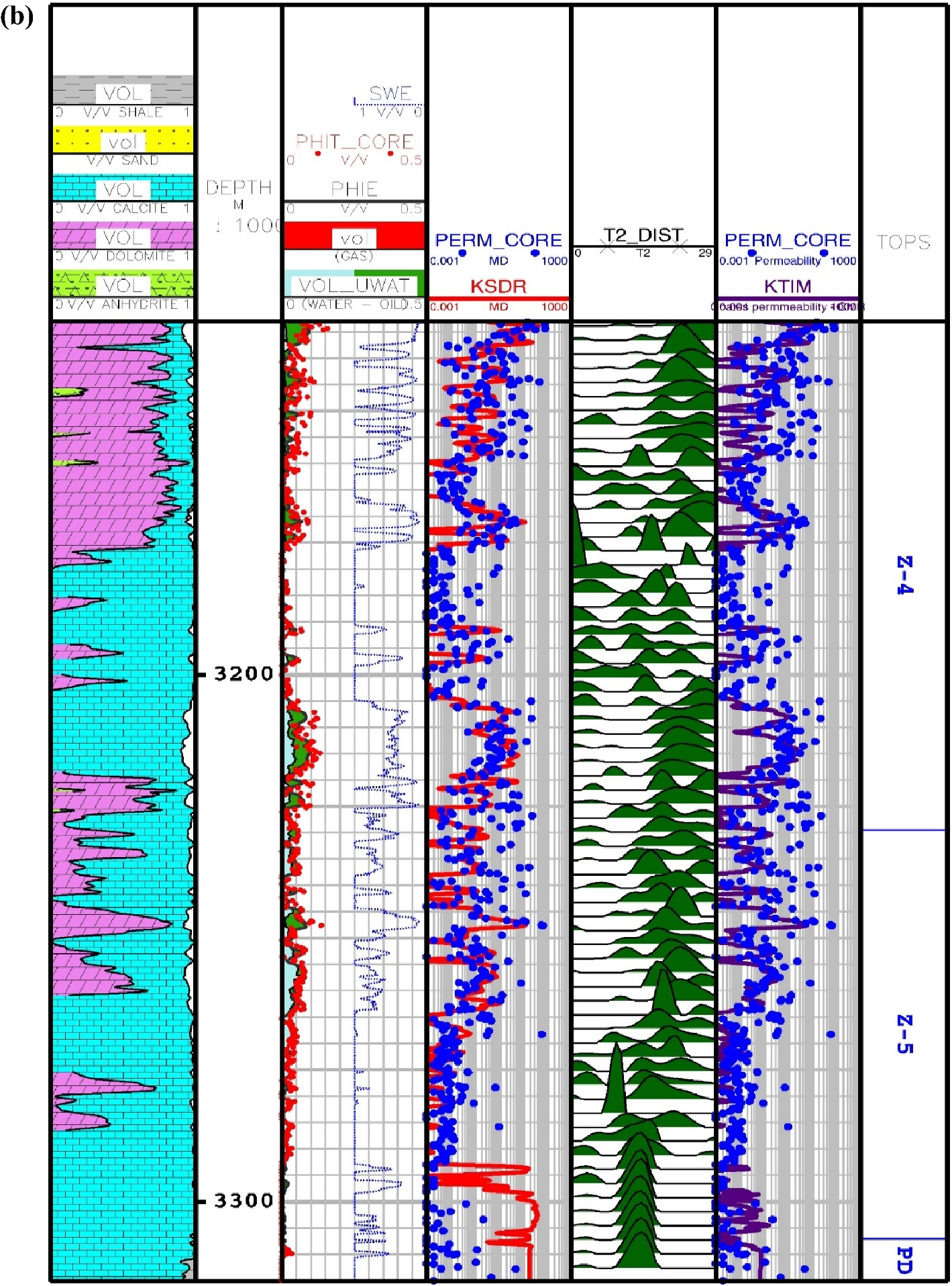

Comparison of the permeability derived from NMR logs with the core permeability data: (a) from Asmari zone 1 to zone 3; (b) from Asmari zone 4 to top of PD formation (PD: Pabdeh formation; T2_DIST: distribution of T2 relaxation time; KSDR: SDR permeability; KTIM: Timur permeability).
