Figure 11

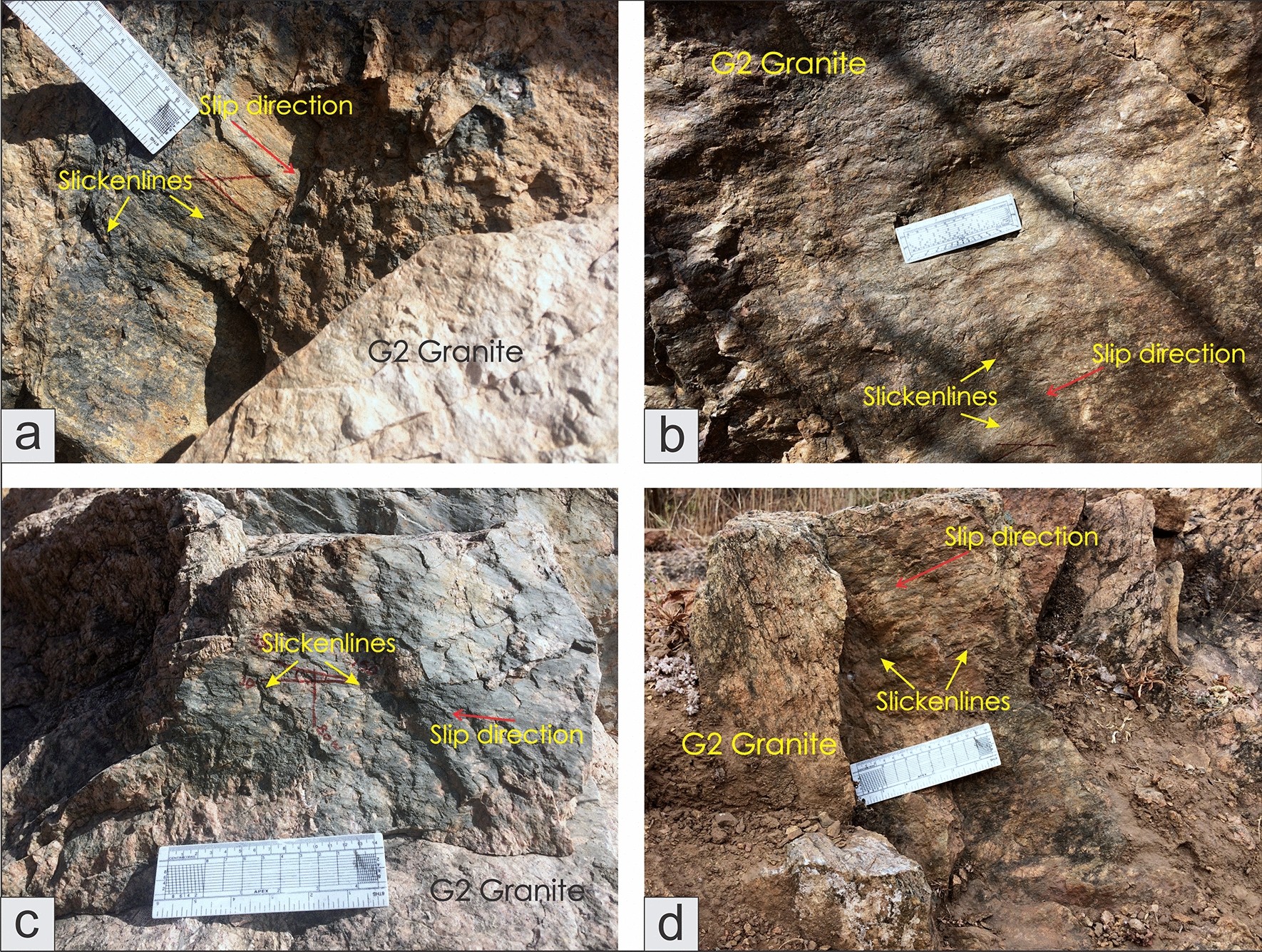

Observed fault surfaces with slicken fibers in the field. (a) Moderately dipping fault surface with normal slip, (b) A gently dipping oblique-slip fault, (c) Steeply dipping strike-slip fault with a sinistral sense of shearing, (d) A moderately dipping oblique-slip fault.
