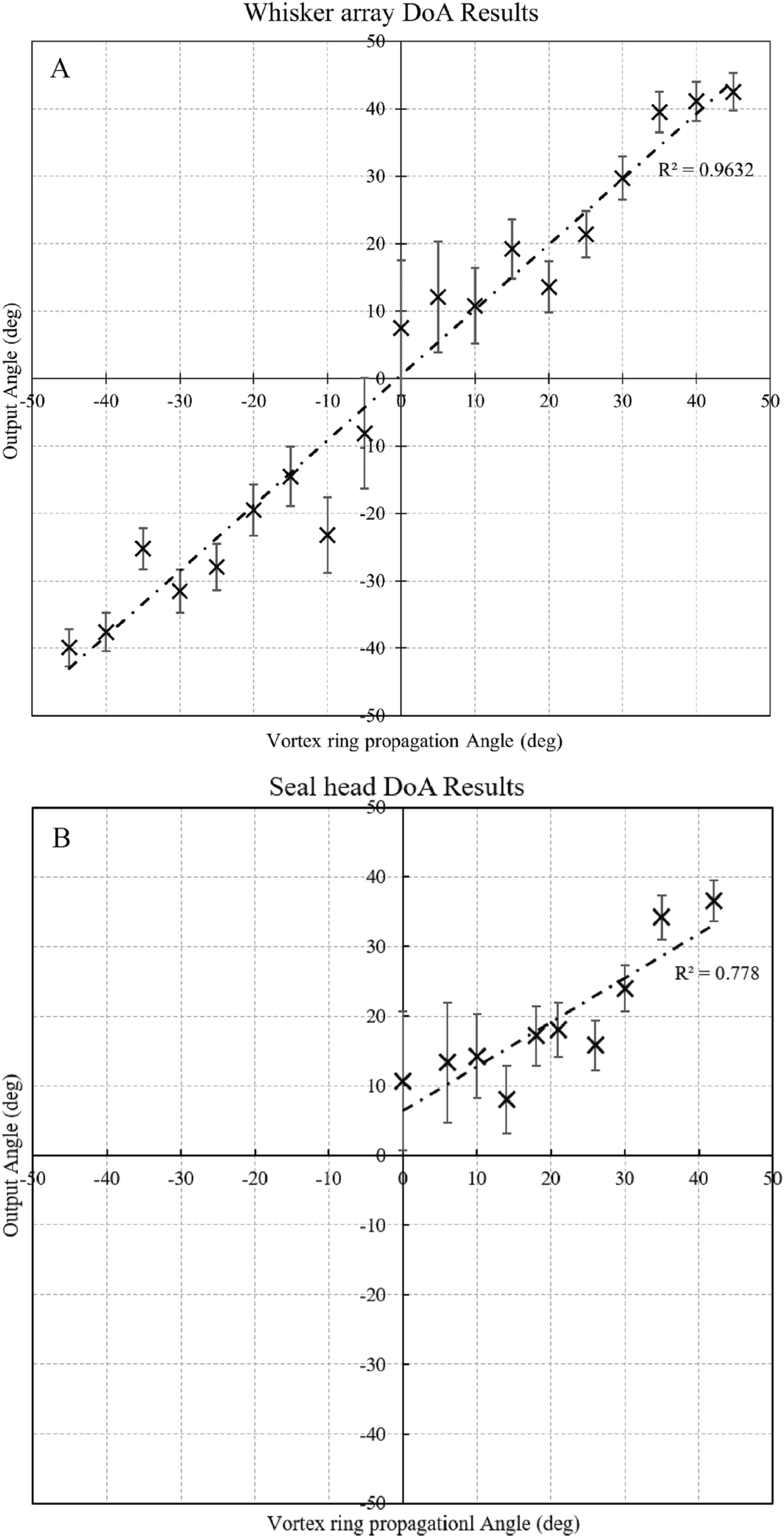

Figure 8
Calculated DoA angle using multilateration versus the vortex travel direction. Error bars indicate the range of DoA predictions produced from 50+ different whisker pairings per angle, from a single pulse. (A) regular array on the flat plat for a full 90\(^\circ\) arc (Top). (B) array on the sea lion model tested for single-sided contralateral pad impact at angles from 0\(^\circ\) to 45\(^\circ\).
