Figure 3
From: Zoledronate combined metal-organic frameworks for bone-targeting and drugs deliveries

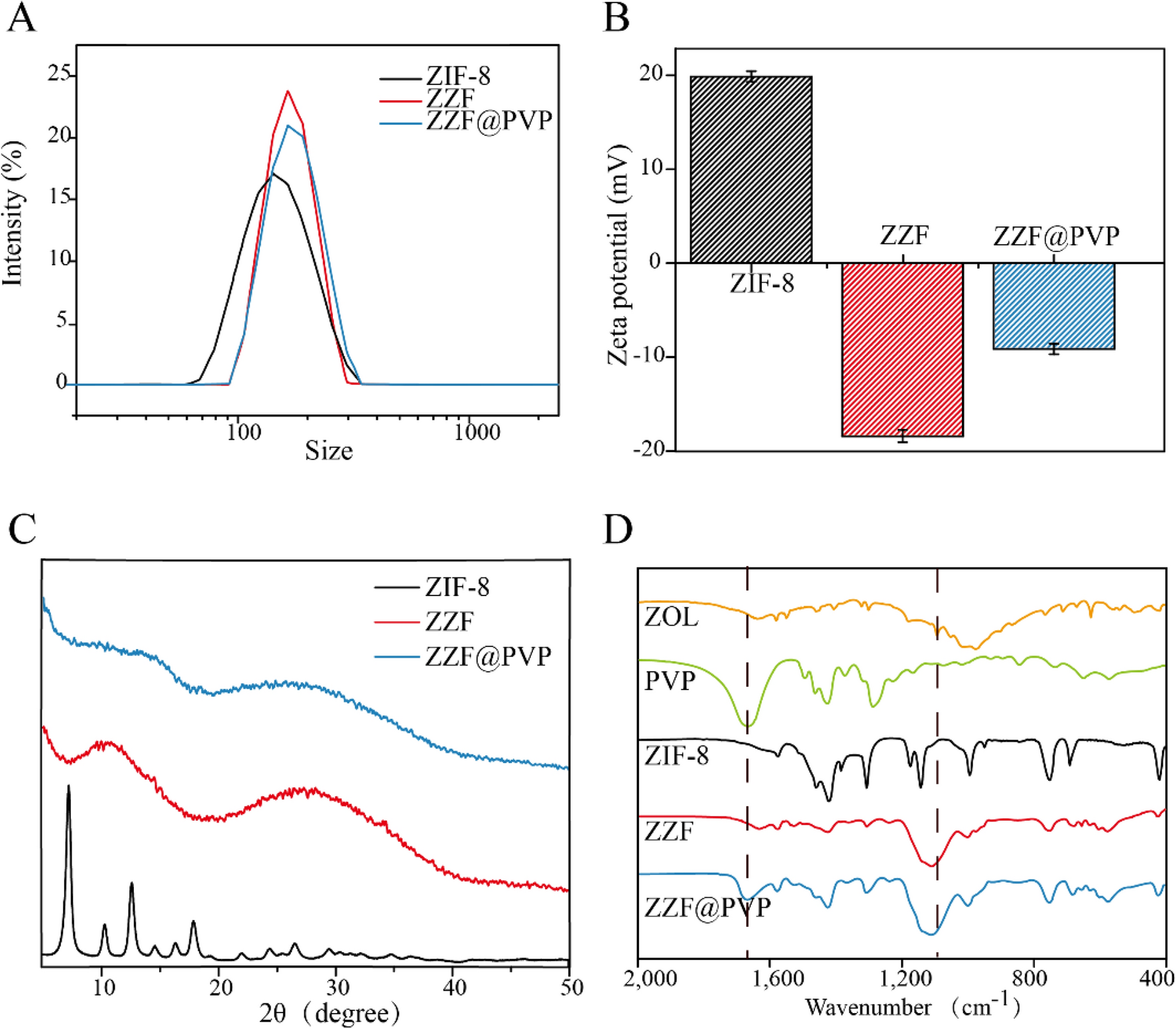

(A) DLS, (B) zeta-potential, and (C) powder XRD of ZIF-8, ZZF, and ZZF@PVP. (D) FTIR spectra of free ZOL, PVP, ZIF-8, ZZF, and ZZF@PVP.
Figure 3 | Scientific Reports
