From: Dynamical stochastic simulation of complex electrical behavior in neuromorphic networks of metallic nanojunctions

Figure 6

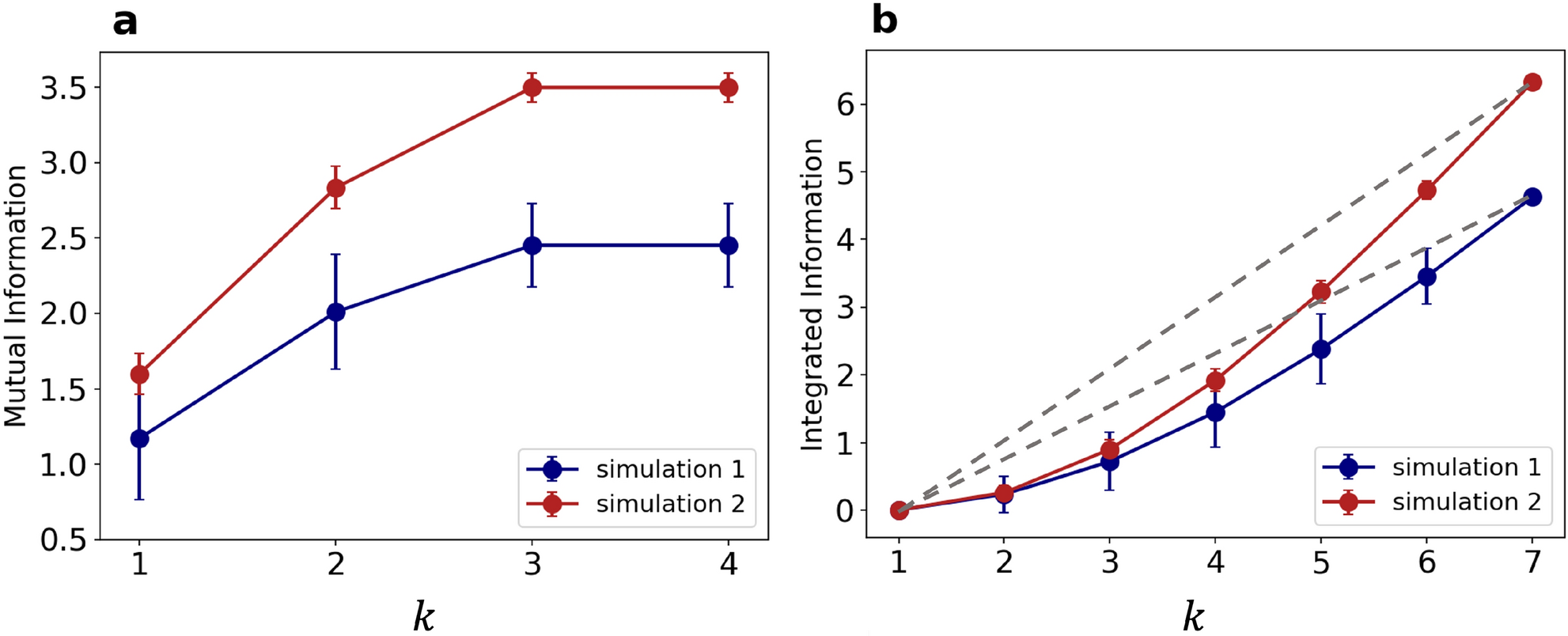

(a) \(\overline{\text {MI}}(k)\) computed from two statistically independent simulations at \(\Delta V=1\) V (blue and red), as a function of the number of subregions, k, considered. (b) \(\overline{\text {IN}}(k)\) computed for the same simulations. In both cases, data are collected over 200 distinct MC configurations and errorbars are given by the evaluation of these observables over all the different ways of choosing a given k. Grey dashed lines represent the \(\overline{\text {IN}}\) growth in a fully correlated system.
