Figure 1 | Scientific Reports

Figure 1

From: Toxicity and genotoxicity of imidacloprid in the tadpoles of Leptodactylus luctator and Physalaemus cuvieri (Anura: Leptodactylidae)

Figure 1The alternative text for this image may have been generated using AI.

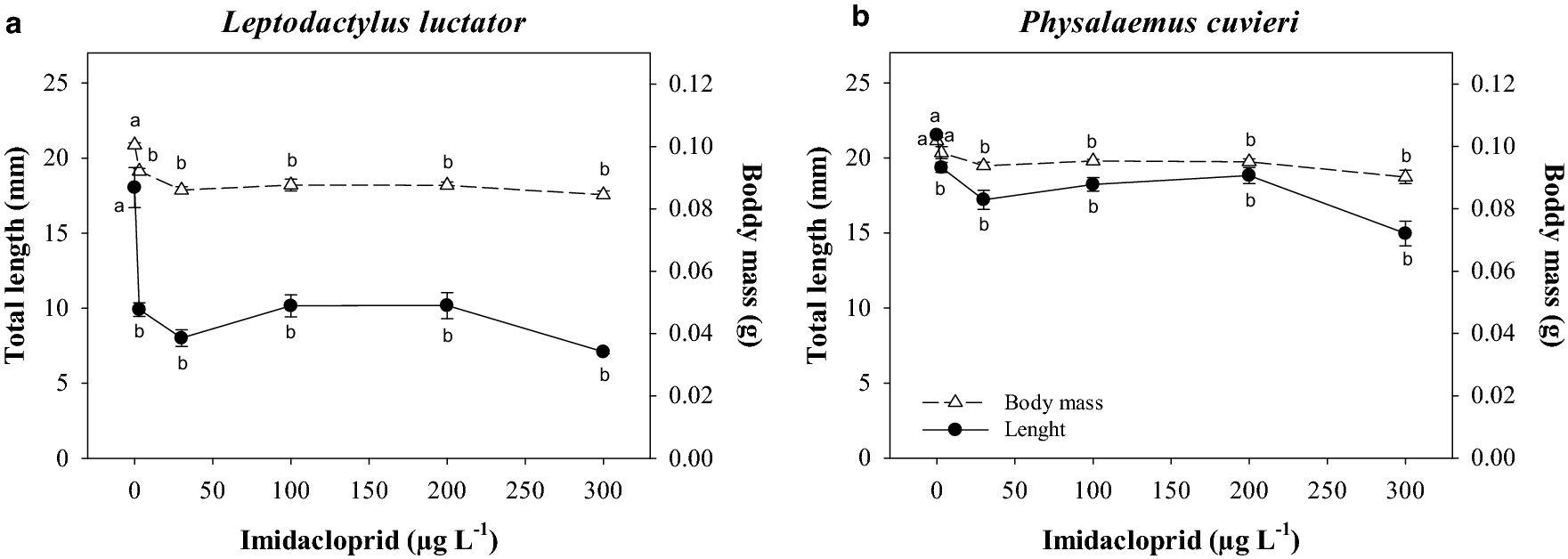

Total length (mm, open triangle) and body mass (g, closed circle) of the Leptodactylus luctator (a) and Physalaemus cuvieri (b) tadpoles exposed for 168 h to different concentrations of an imidacloprid-based insecticide. The data are presented as the mean ± SEM (n = 3).
