Figure 3
From: MIL-125-based nanocarrier decorated with Palladium complex for targeted drug delivery

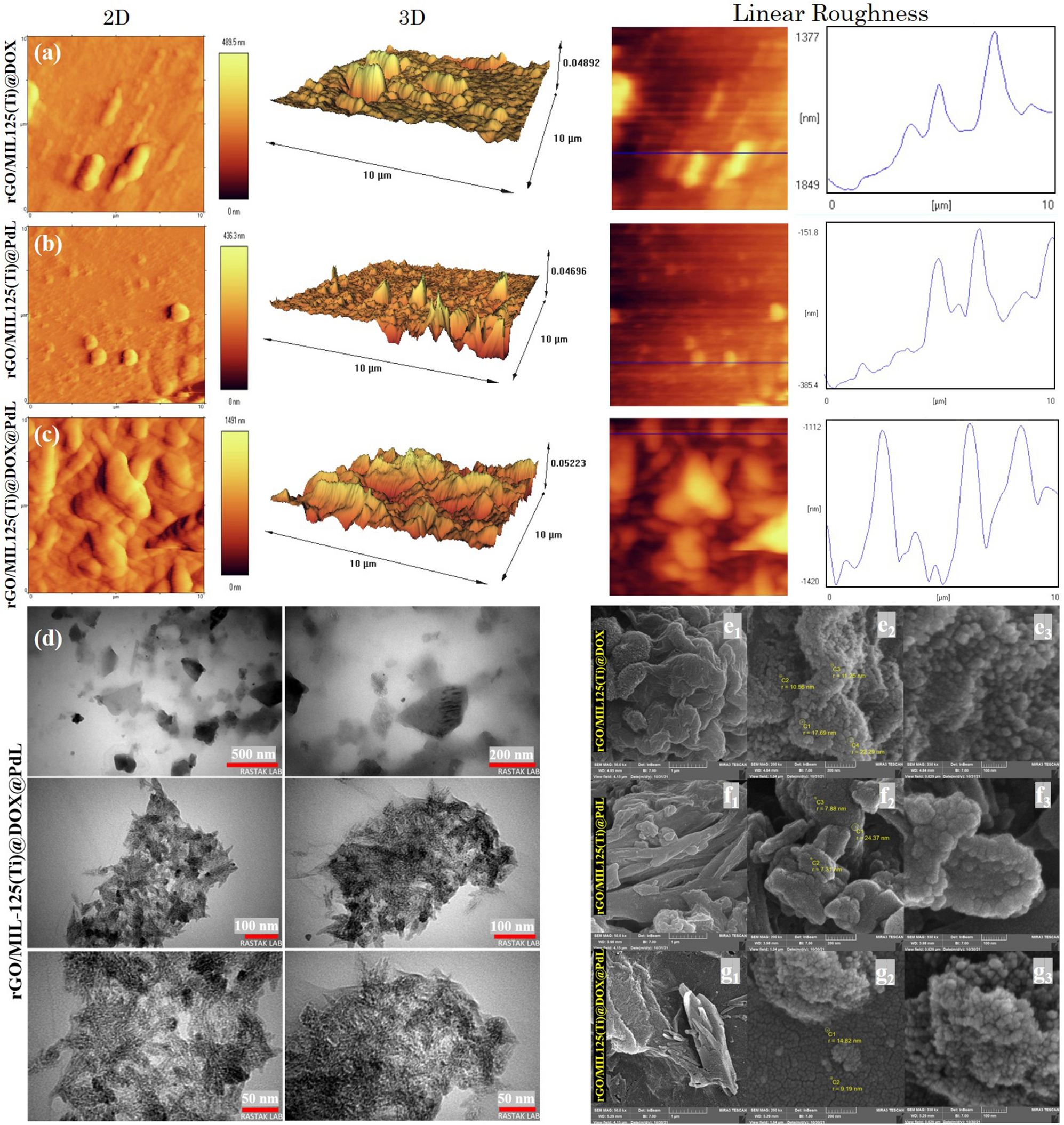

The 2D, 3D, and linear roughness of nanocomposites’ poriferous surface (a) rGO/MIL-125(Ti)@PdL, (b) rGO/MIL-125(Ti)@DOX, and (c) (rGO/MIL-125(Ti)@PdL@DOX). (d) TEM results of prepared nanocomposite rGO/MIL-125(Ti)@DOX@PdL. FESEM results of prepared nanocomposites. (e) rGO/MIL-125(Ti)@DOX, (f) rGO/MIL-125(Ti)@PdL, (g) rGO/MIL-125(Ti)@DOX@PdL.
