From: Pancreatic adenocarcinoma associated immune-gene signature as a novo risk factor for clinical prognosis prediction in hepatocellular carcinoma

Figure 2

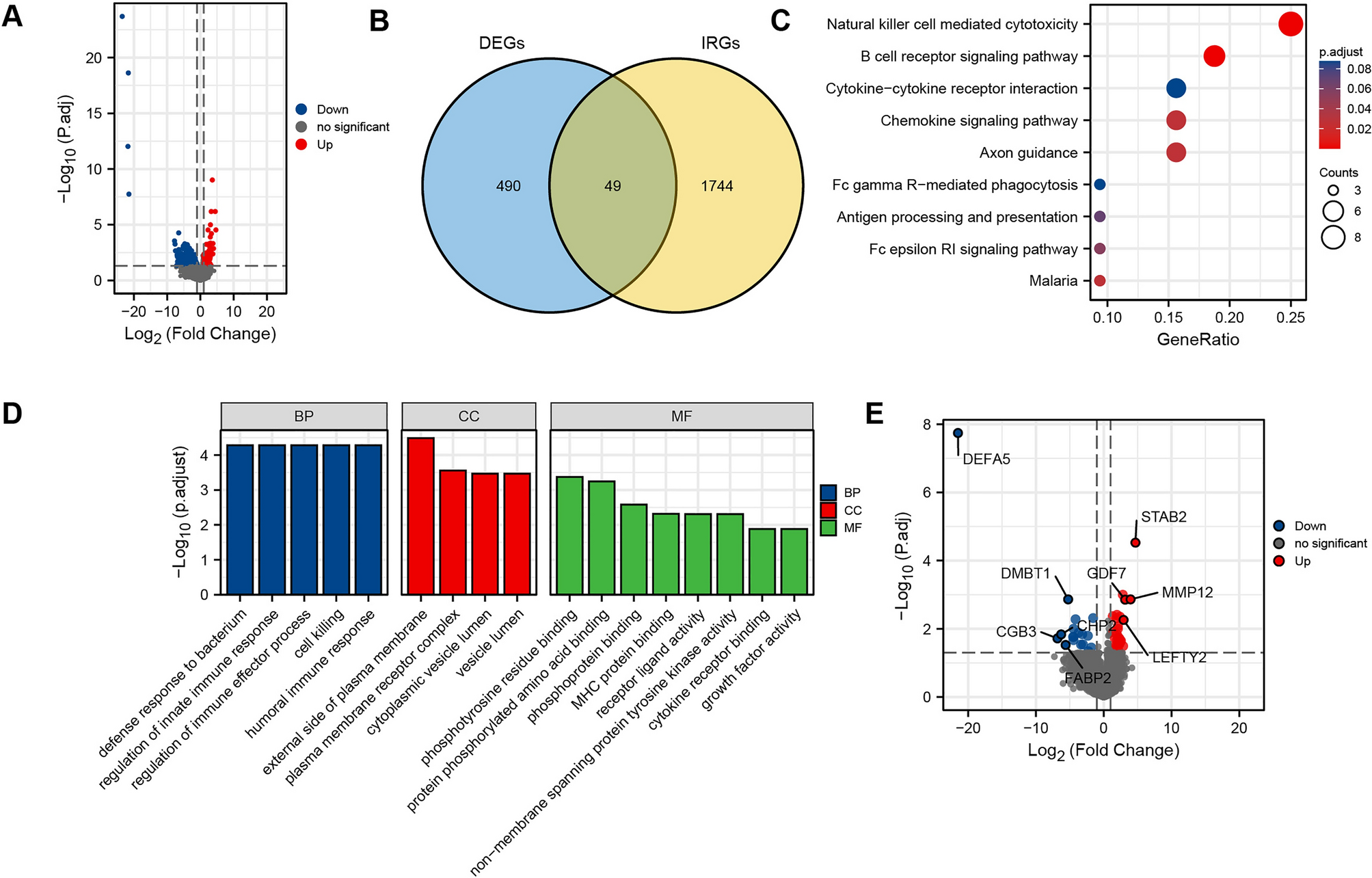

Screening of differentially expressed genes and immune-related genes related to pancreatic adenocarcinoma. (A) Volcano plot of 539 DEGs; (B) Venn diagram of intersection of DEGs and IRGs. (C) KEGG pathways analysis of genes in DEGs & IRGs; (D) GO analysis of genes in DEGs & IRGs; (E) Volcano plot of 49 genes in DEGs & IRGs. DEGs differentially expressed genes, IRGs immune-related genes, KEGG Kyoto Encyclopedia of Genes and Genomes, GO Gene Ontology.
