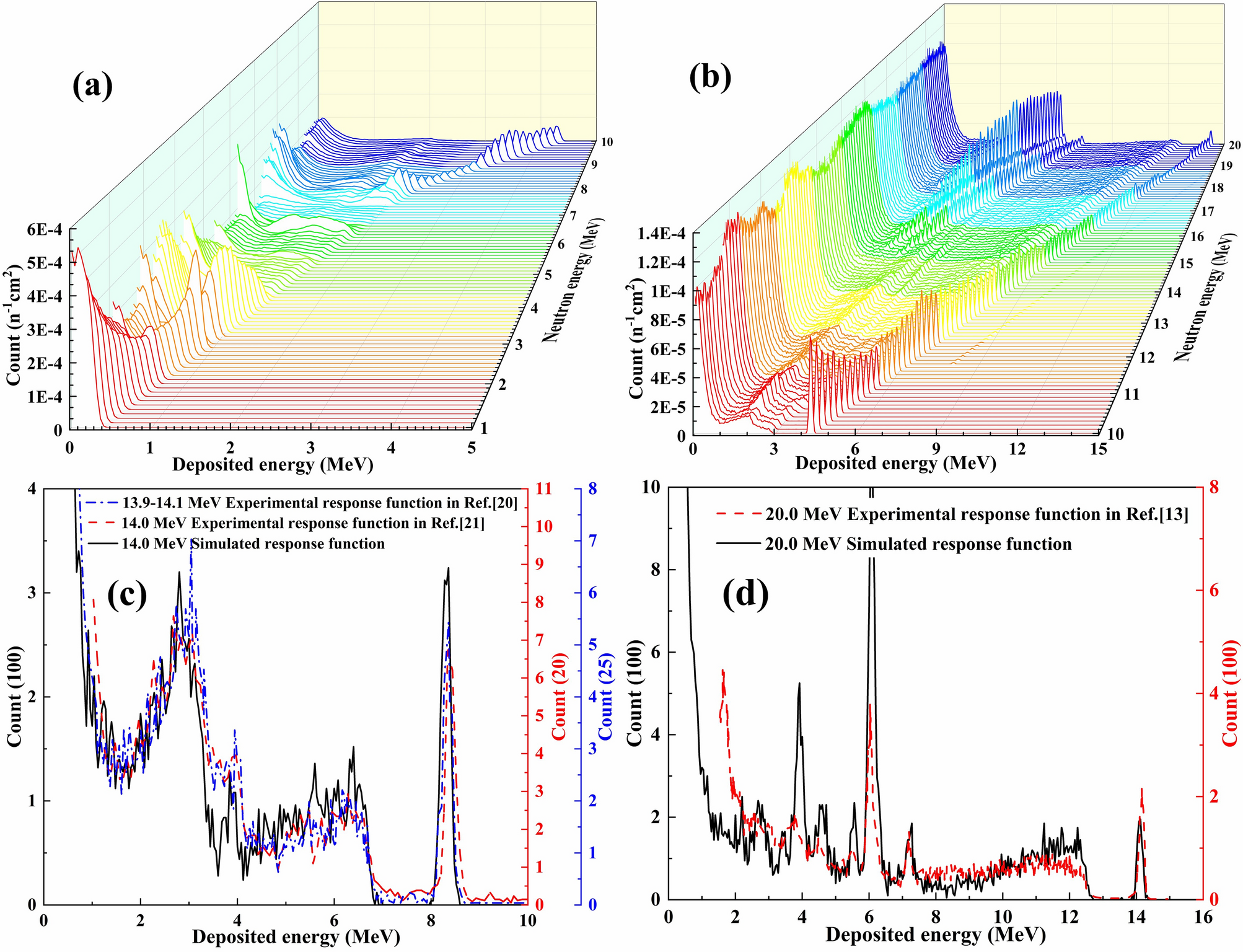

Figure 2

The simulated response matrix of the diamond detector for neutron energies ranging from 1.0 to 10.0 MeV (a) and 10.0 to 20.0 MeV (b), and the simulated response functions compared with the experimental ones reported previously^13,20,21 for 14.0 MeV (c) and 20.0 MeV (d) neutrons.
