Figure 4 | Scientific Reports

Figure 4

From: The rise of Indian summer monsoon precipitation extremes and its correlation with long-term changes of climate and anthropogenic factors

Figure 4

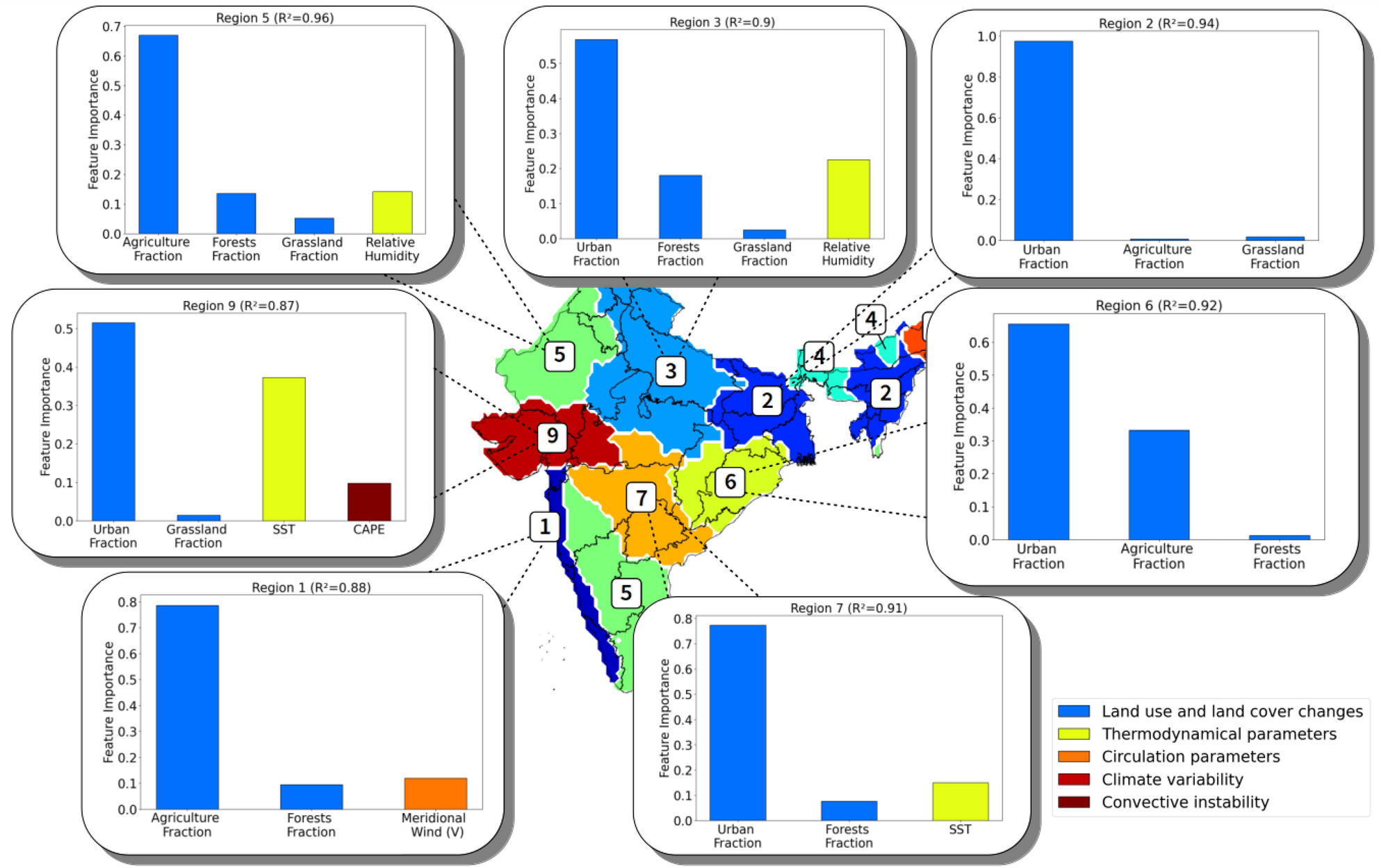

Conditional permutation feature importance for the intensity trends. The most important selected features in the prediction of the intensity of extreme events are displayed in all the regions. The colors of the bars correspond to the five different feature categories (LULCs, thermodynamical, circulation, climate variability and convective instability parameters).
