Figure 14
From: Dynamic response and failure characteristics of combined rocks under confining pressure

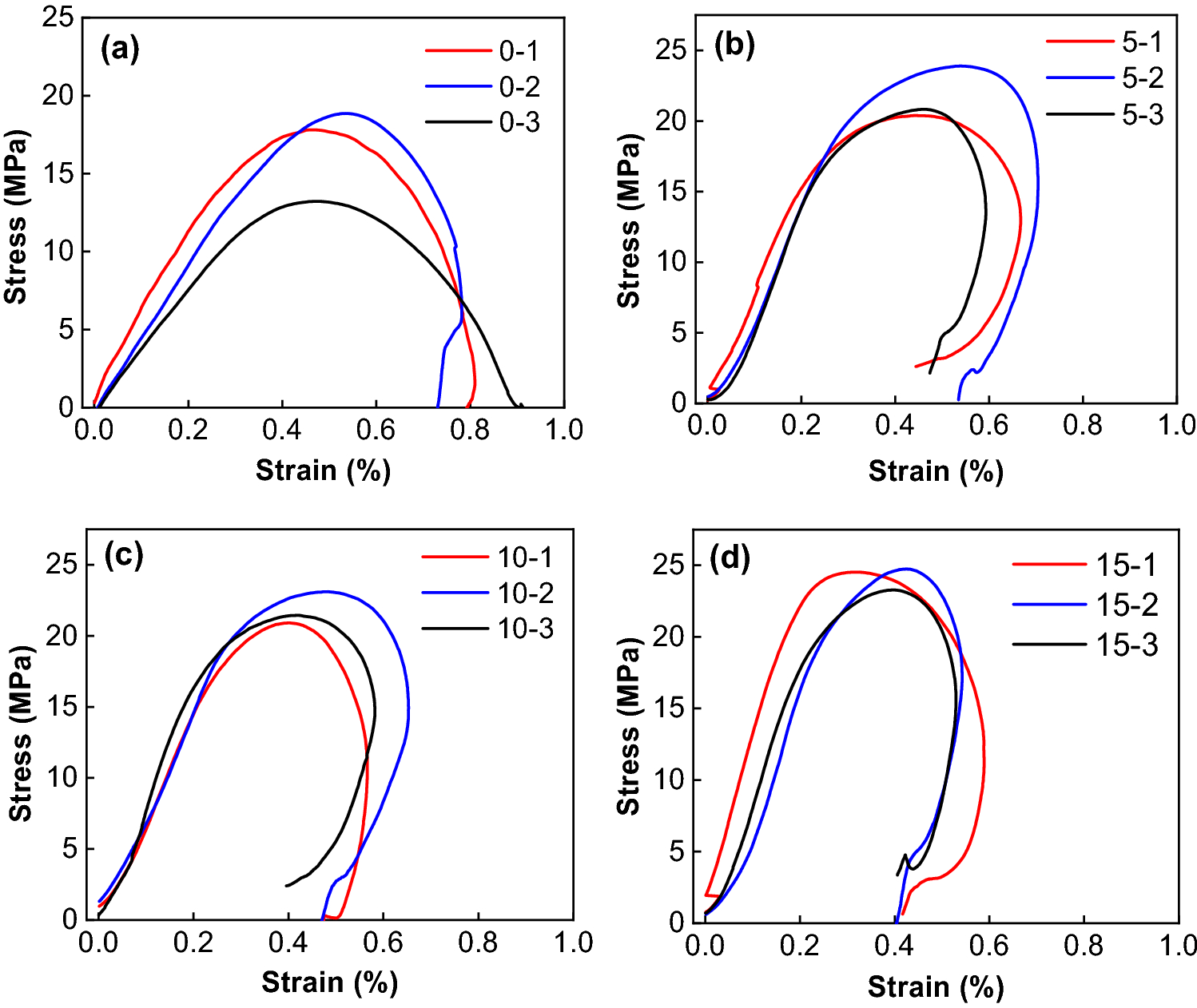

Dynamic stress–strain curves of combined bodies under different confining pressures. (a) 0 MPa, (b) 5 MPa, (c) 10 MPa, (d) 15 MPa.
