Figure 16
From: Dynamic response and failure characteristics of combined rocks under confining pressure

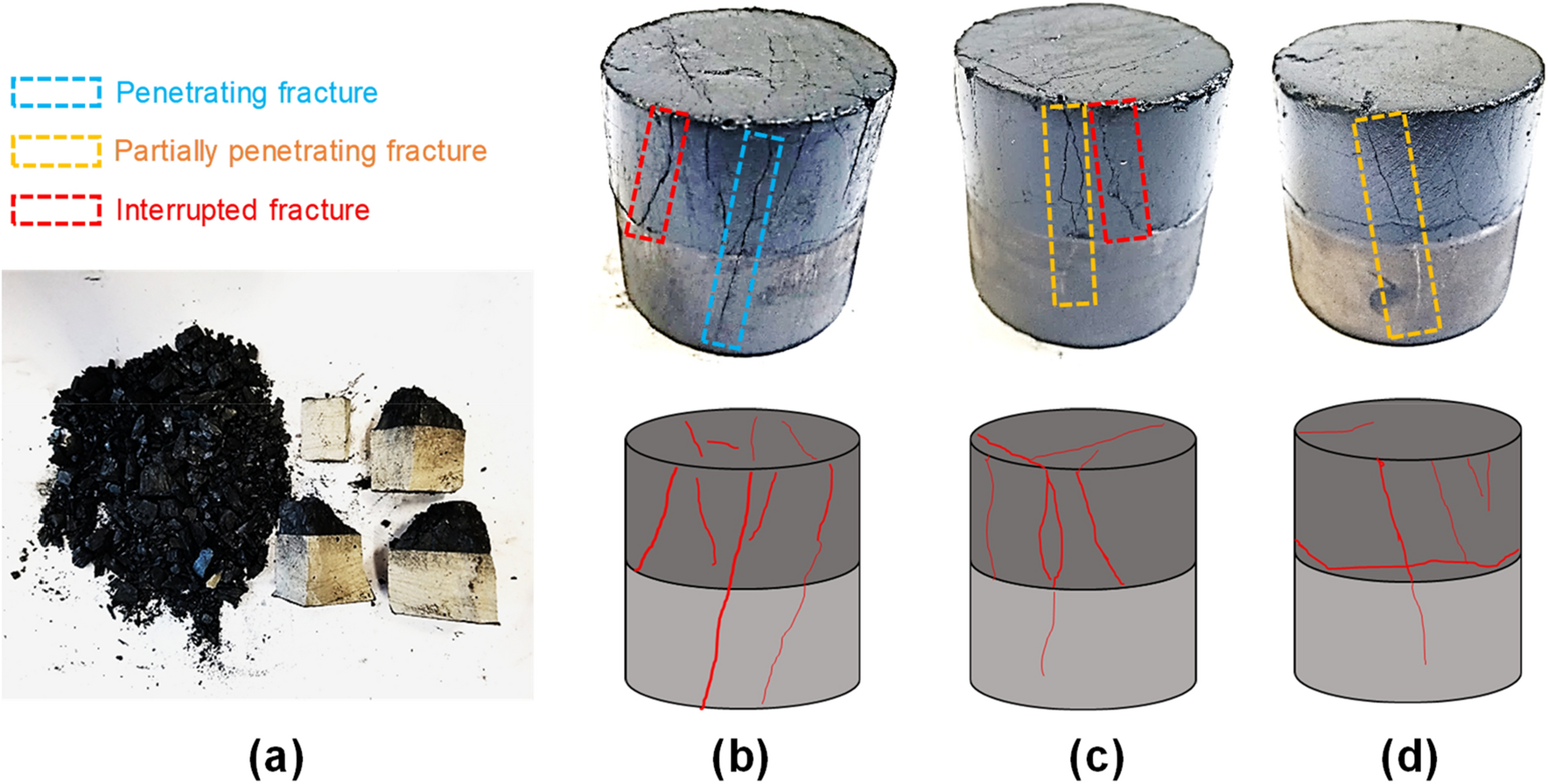

Failure mode and crack propagation in combined samples under different confining pressure. (a) unconfined, (b) 5 MPa, (c) 10 MPa, (d) 15 MPa.
