From: Design, characterization and structure–function analysis of novel antimicrobial peptides based on the N-terminal CATH-2 fragment

Figure 2

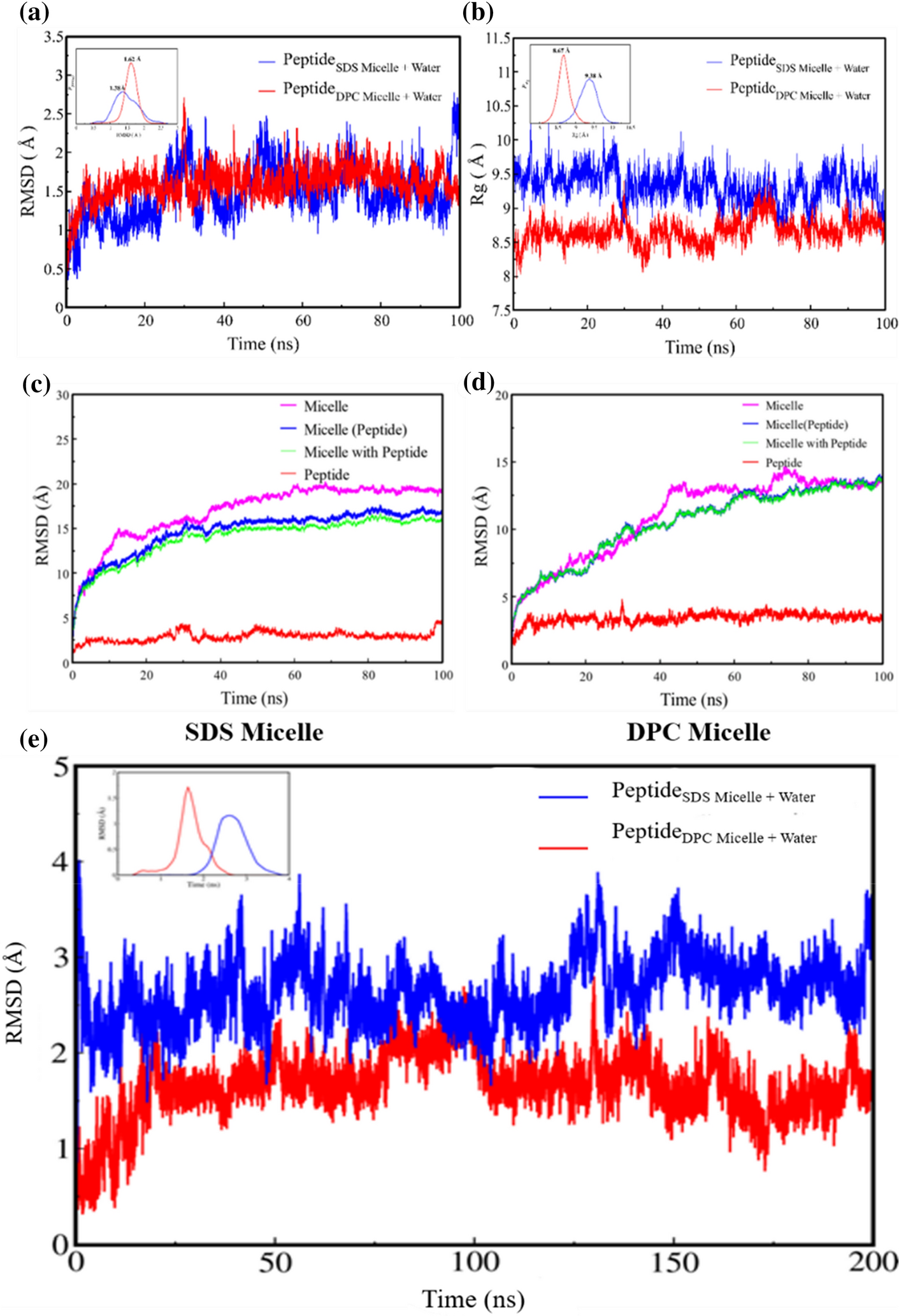

Conformational (RMSD) movement (a), and radius of gyration of the peptide, DP1 in SDS-water micelle complex and DPC-water micelle complex (b). Conformational (RMSD) movement of SDS (c) and DPC micelle (d) in the absence, presence, and the micelle complex with the peptide. Peptide backbone RMSD plotted for the entire 200 ns production dynamics (e).
