From: Design, characterization and structure–function analysis of novel antimicrobial peptides based on the N-terminal CATH-2 fragment

Figure 3

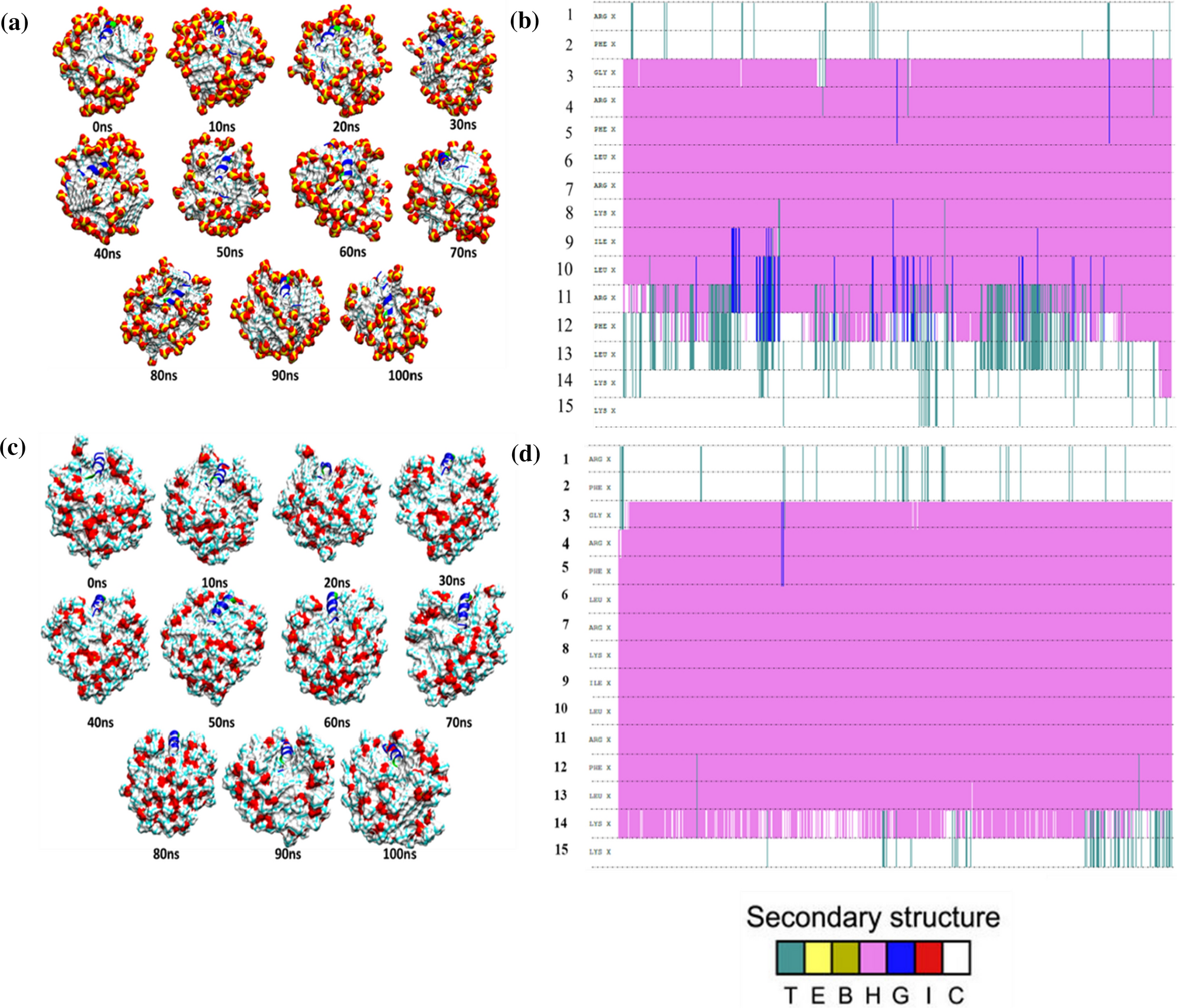

Selected snapshots of the SDS micelle with peptide (a) and DPC micelle with peptide complex (c). The secondary structure analysis of the peptide in SDS micelle (b) and peptide in DPC micelle with water complex (d) throughout the 100 ns trajectory. y-axis represents the amino acid sequence of DP1 and the colored area represents the secondary structure it adopts. (Turn, T (green); helix, H (pink); 310 helix, G (blue)).
