Figure 8

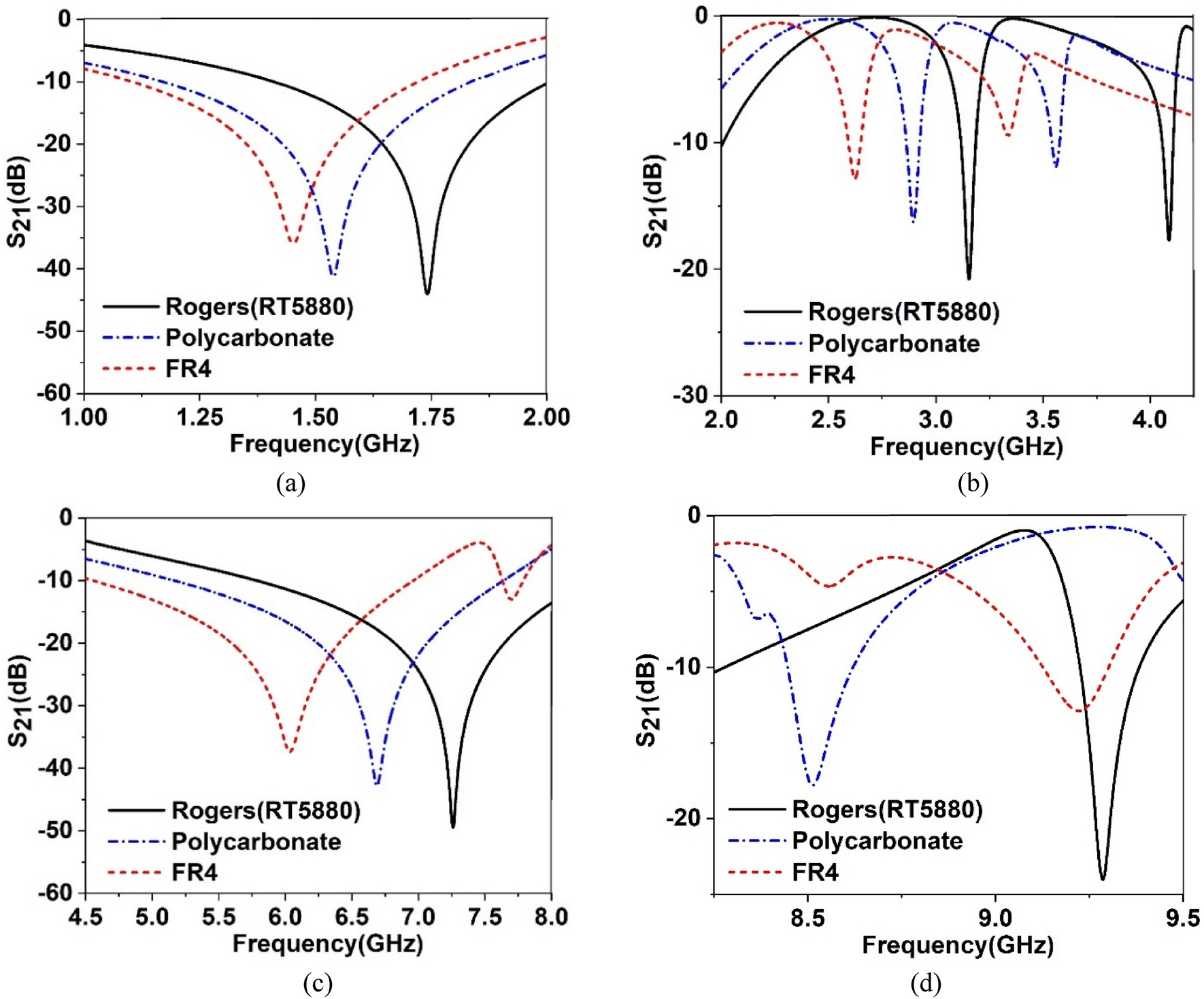

S21 response of the proposed MTM with Rogers(RT5880), Polycarbonate and FR4 dielecrtic layer over resonator within: (a) 1–2 GHz, (b) 2–4 GHz, (c) 4.5–8 GHz, (d) 8.2–9.5 GHz.
Figure 8 | Scientific Reports
S21 response of the proposed MTM with Rogers(RT5880), Polycarbonate and FR4 dielecrtic layer over resonator within: (a) 1–2 GHz, (b) 2–4 GHz, (c) 4.5–8 GHz, (d) 8.2–9.5 GHz.
