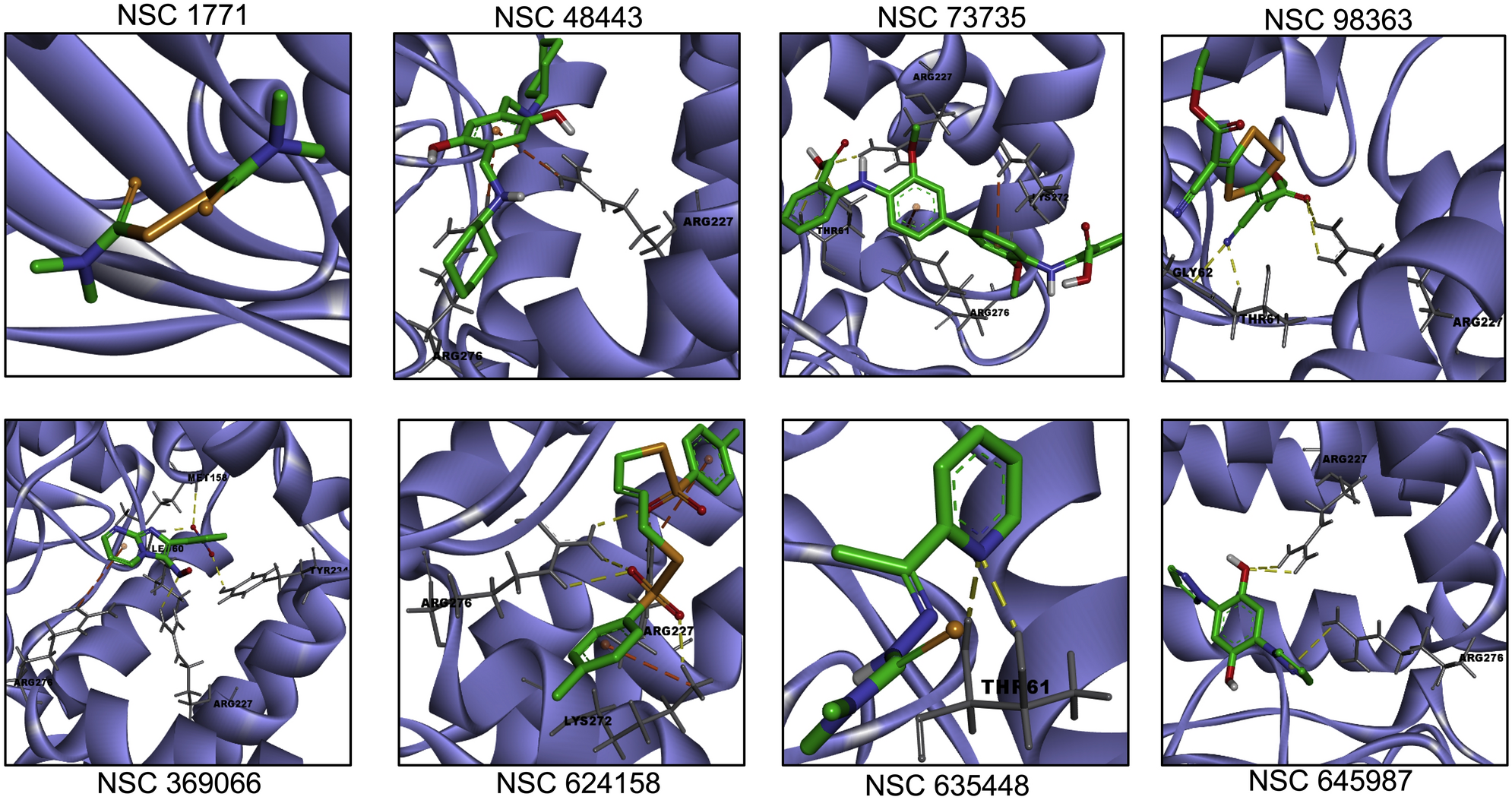

Molecular docking of the identified primary hits in MetX structure from M. tuberculosis. Docking of the identified primary hits in the three-dimensional structure of Rv3341 is shown. The hydrogen bonds and cation-pi bonds have been shown as yellow dotted and orange dotted lines, respectively. The residues involved in these interactions are also labeled in the panels.
