Figure 7

From: Foveolar thickness as potential standardized structural outcome measurement in studies of Bietti crystalline dystrophy

Figure 7

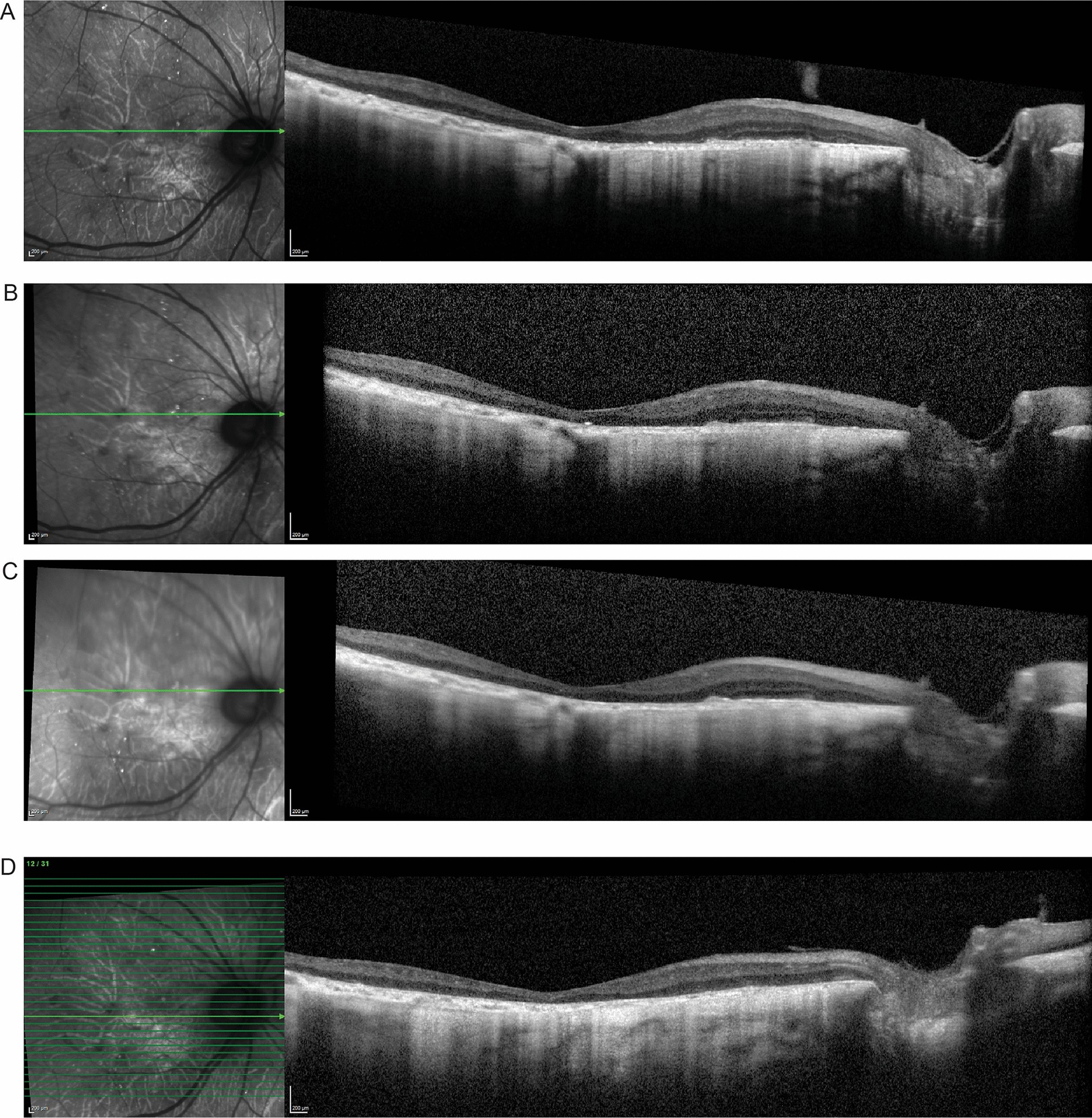

Spectral domain-optical coherence tomography (SD-OCT) for P3. The green line in each IR-R image indicates the position of the SD-OCT scan. (A) The horizontal scan through the fovea of the right eye for P3 at initial presentation (B) at 3-month follow up visit (C) at 6-months and (D) a 3-year follow up visit showing absence of EZ band, loss of the retinal layer structures and progressive decrease of foveolar thickness.
