Figure 6
From: Center-environment feature models for materials image segmentation based on machine learning

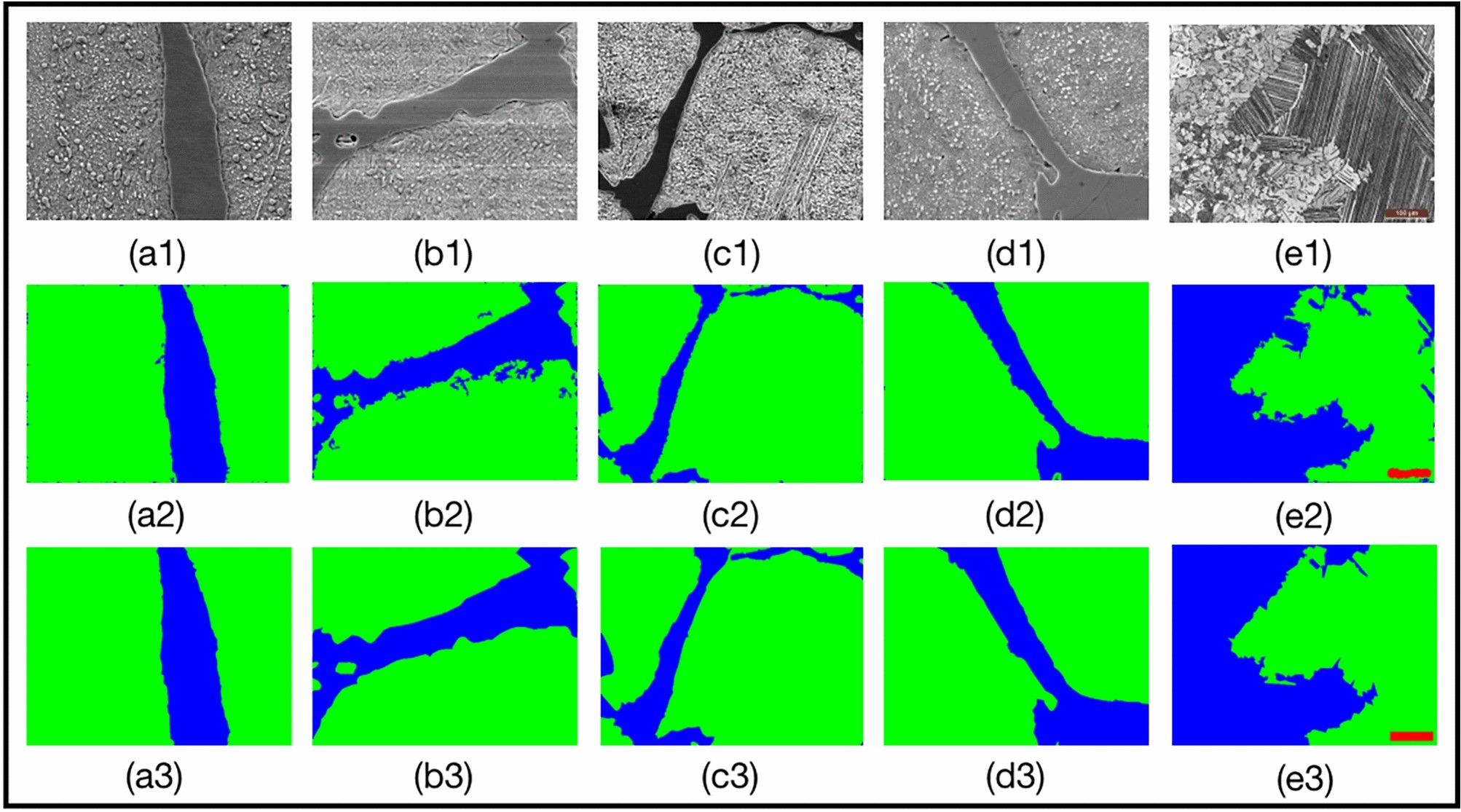

Results with our CES models after post-processing. (a1,b1,c1,d1) are the original carbon steel images; e1 is the original TiAl image; (a2,b2,c2,d2,e2) are the results with our method, respectively; (a3,b3,c3,d3,e3) are the ground truth of the images. The primary microconstituent of a1, b1 and d1 is spheroidite, and the primary microconstituent of c1 is pearlite and spheroidite. The primary microconstituent of e1 is equiaxed structure and lamellar structure.
