Figure 2 | Scientific Reports

Figure 2

From: The prevalence and natural history of hepatic cysts examined by ultrasound: a health checkup population retrospective cohort study

Figure 2The alternative text for this image may have been generated using AI.

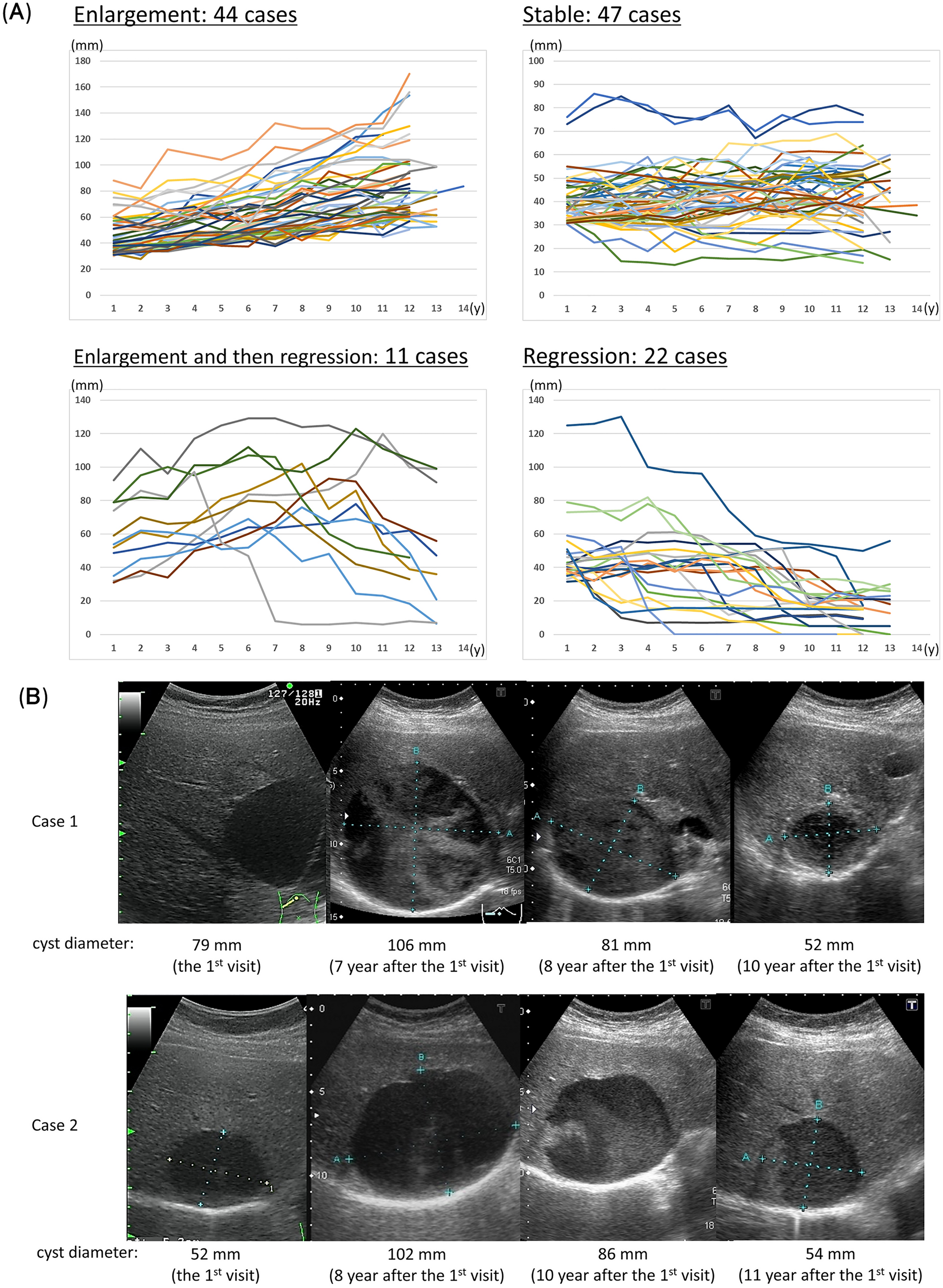

(A) Changes 10 years later in the diameter of hepatic cysts that were ≥ 31 mm at the first health checkup. (B) Ultrasonographic Imaging. Case 1 represents a regression case where intracystic hyperechoic fluid was observed in the seventh year followed by regression in cyst size. Case 2 represents a regression case where intracystic hyperechoic fluid was observed in the tenth year followed by regression in cyst size.
