Figure 1
From: High frequency resistive switching behavior of amorphous TiO2 and NiO

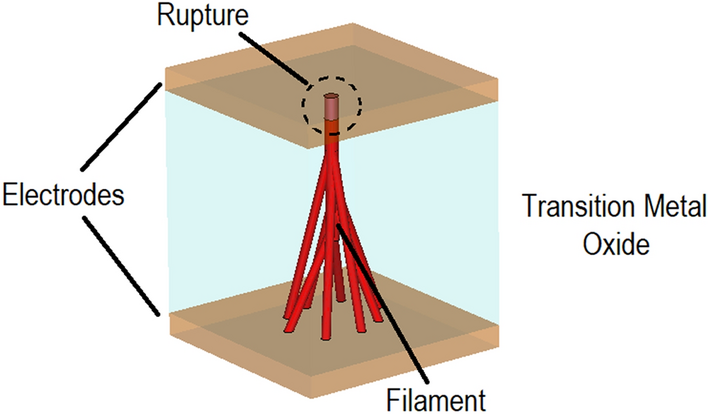

Illustration of filaments in electro-formed crystalline state Transition Metal Oxide. Switching action occurs upon application of DC bias voltage causing establishment of conductive paths.
