Figure 12

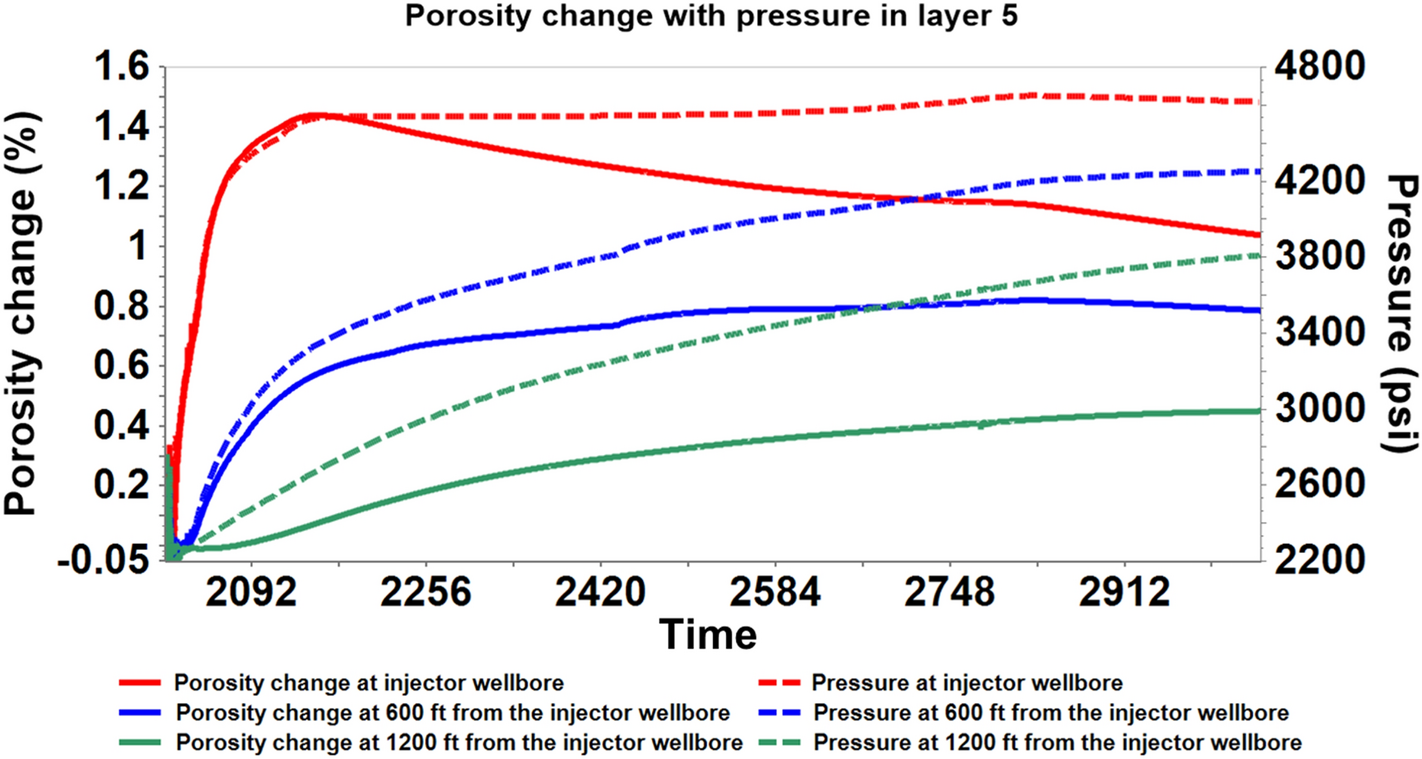

The evolution of stress-induced porosity changes with pressure within the bottom caprock layer (Layer 5) at variable distances from the wellbore during 1000 years of monitoring.
Figure 12 | Scientific Reports
The evolution of stress-induced porosity changes with pressure within the bottom caprock layer (Layer 5) at variable distances from the wellbore during 1000 years of monitoring.
