Figure 3

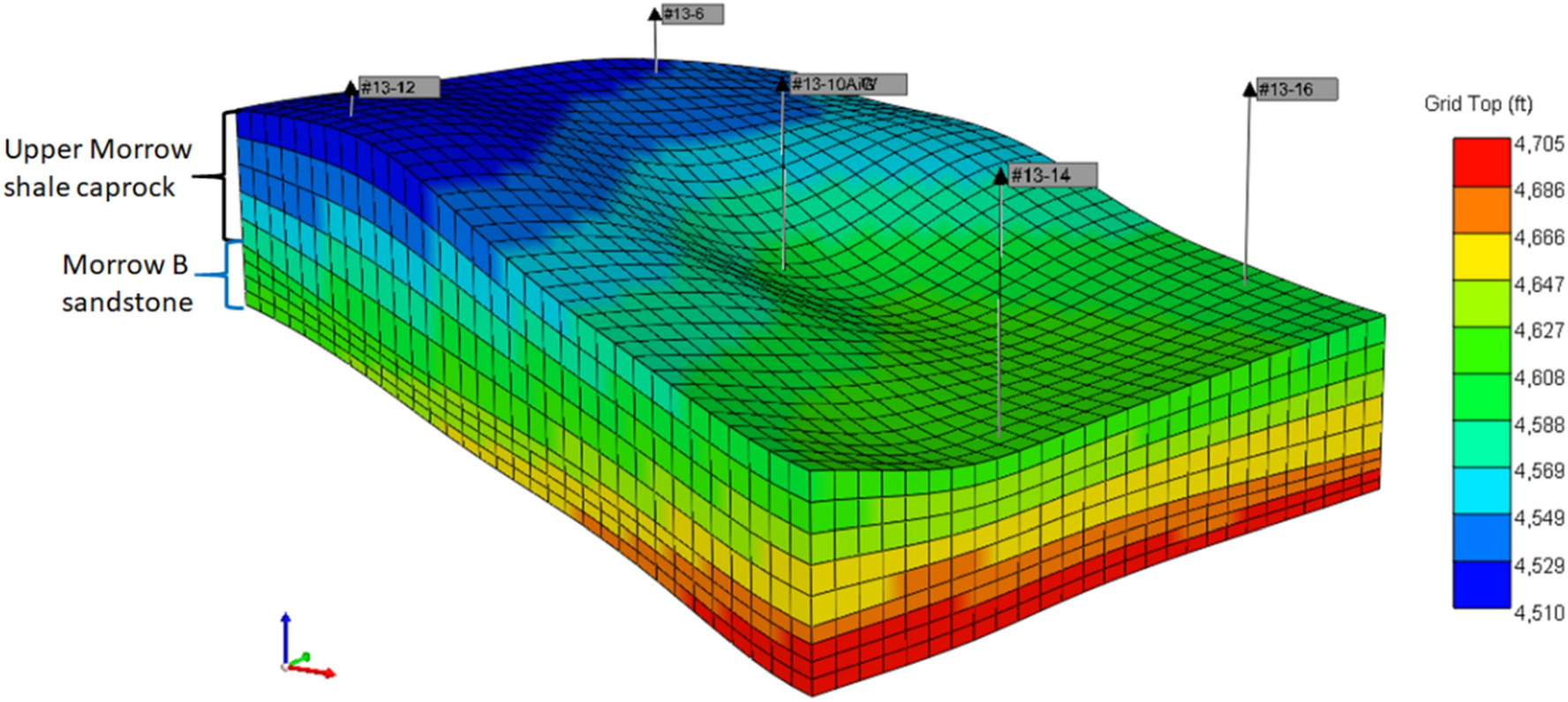

3D view of the 13-10A inverted 5-spot pattern consisting of the Morrow B sandstone and the upper Morrow shale. Layer 1 is the top layer of the caprock and numbers increase with depth through to Layer 9 indicated as the bottom layer of the reservoir.
