Figure 2
From: Investigation of acoustic waves behavior of an underground tunnel in a multilayer soil

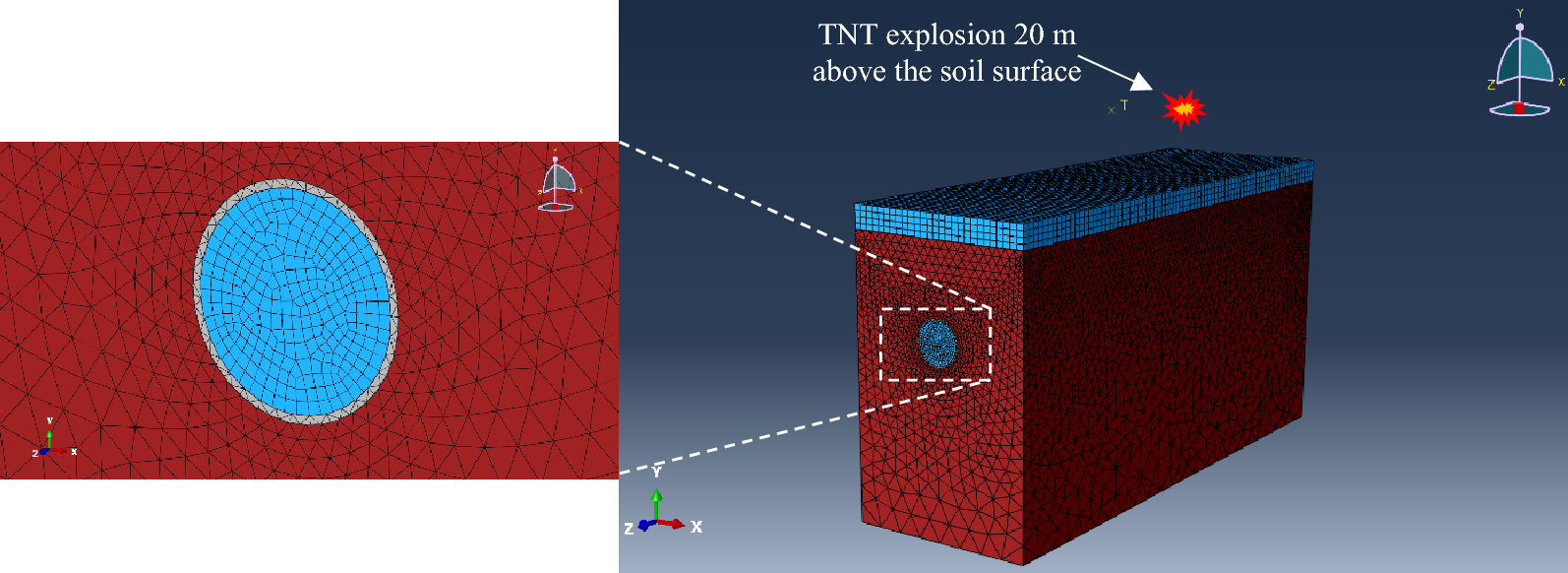

Schematic representation of the underground structure system where red represents the soil, grey represents the lining, and blue represents the air both inside the tunnel and at the surface.
