Figure 5
From: Gastruloids as in vitro models of embryonic blood development with spatial and temporal resolution

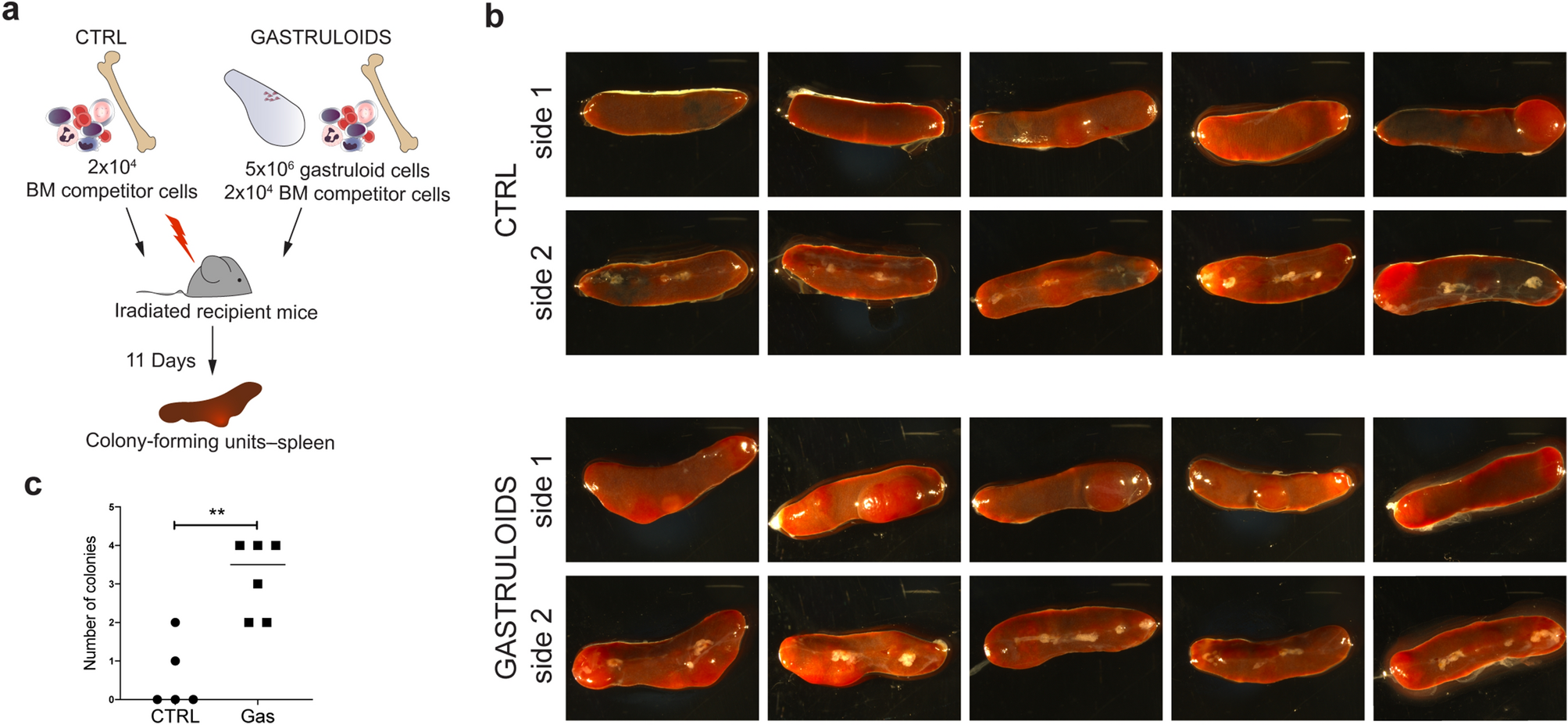

Gastruloid-derived cells form CFU-S upon transplantation. (a) Schematic overview of the transplantation strategy and analysis of CFU-S. (b) Stereomicroscope images of spleens from 5 different recipient mice imaged on both sides. (c) Quantification of the number of colonies observed in recipient mice transplanted with control cells or cells derived from Gata6-Venus gastruloids. Single data points are shown in graph. n = 5 control mice and n = 6 mice were injected with Gata6-Venus gastruloid cells. CTRL control, BM bone marrow.
