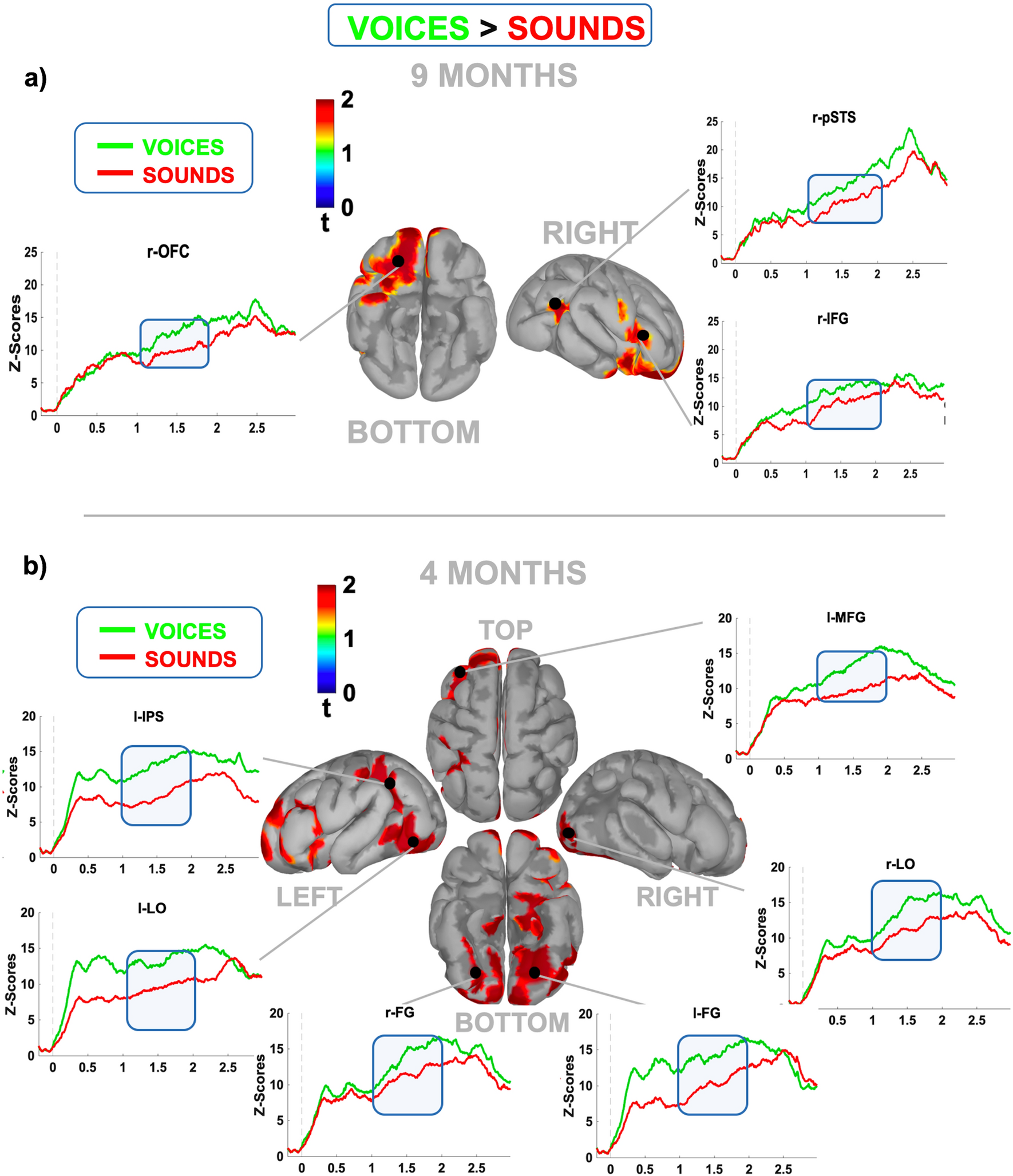

Figure 6
From: Face specific neural anticipatory activity in infants 4 and 9 months old
Prestimulus cortical source reconstruction (voices vs. sound) in infants. The maps display the reconstruction of the averaged cortical activity relative to the portion of CNV significantly modulated by the cue (blue bar) in 9- (a) and 4-month-old (b) infants. The surrounding panels show the comparison between the time course of the averaged normalized and smoothed activity induced by human voices (green line) vs. nonhuman sounds (red line) relative to the cortical regions showing significant modulation (p < 0.05; uncorrected).
