Figure 3

From: The bacterial and fungal communities of the larval midgut of Spodoptera frugiperda (Lepidoptera: Noctuidae) varied by feeding on two cruciferous vegetables

Figure 3

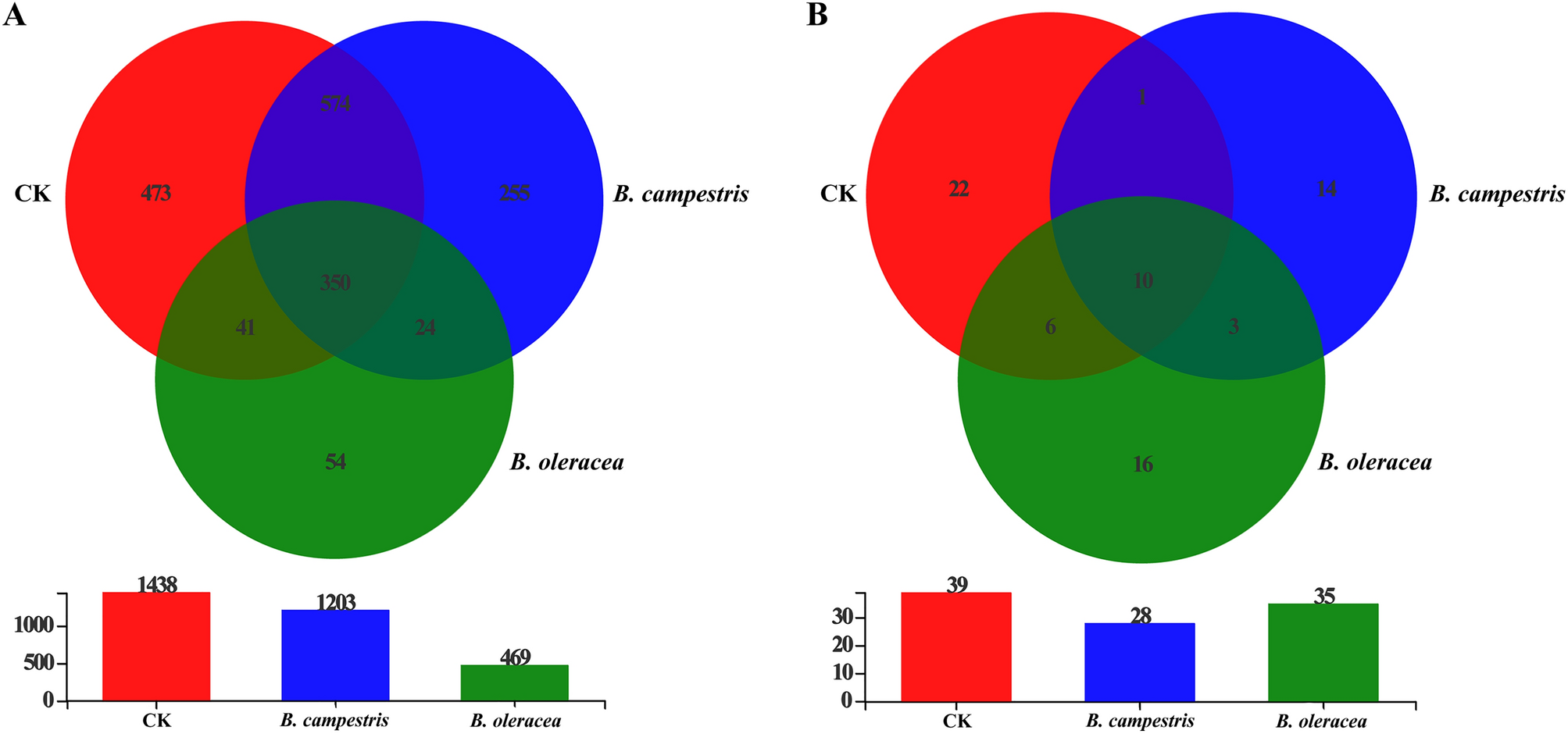

The analysis of the number of microbial species in different groups. (A) A Venn diagram and histogram of the bacterial species in different groups. (B) A Venn diagram and histogram of the fungal species in different groups. Red rings represent the species from the control group, blue rings represent the species from the group fed on B. campestris, and green rings represent the species from the group fed on B. oleracea, respectively. The figure was created by jvenn (version 1.0) (http://www.bioinformatics.com.cn/static/others/jvenn/example.html.).
