Figure 5
From: The lithological characteristics of natural gas hydrates in permafrost on the Qinghai of China

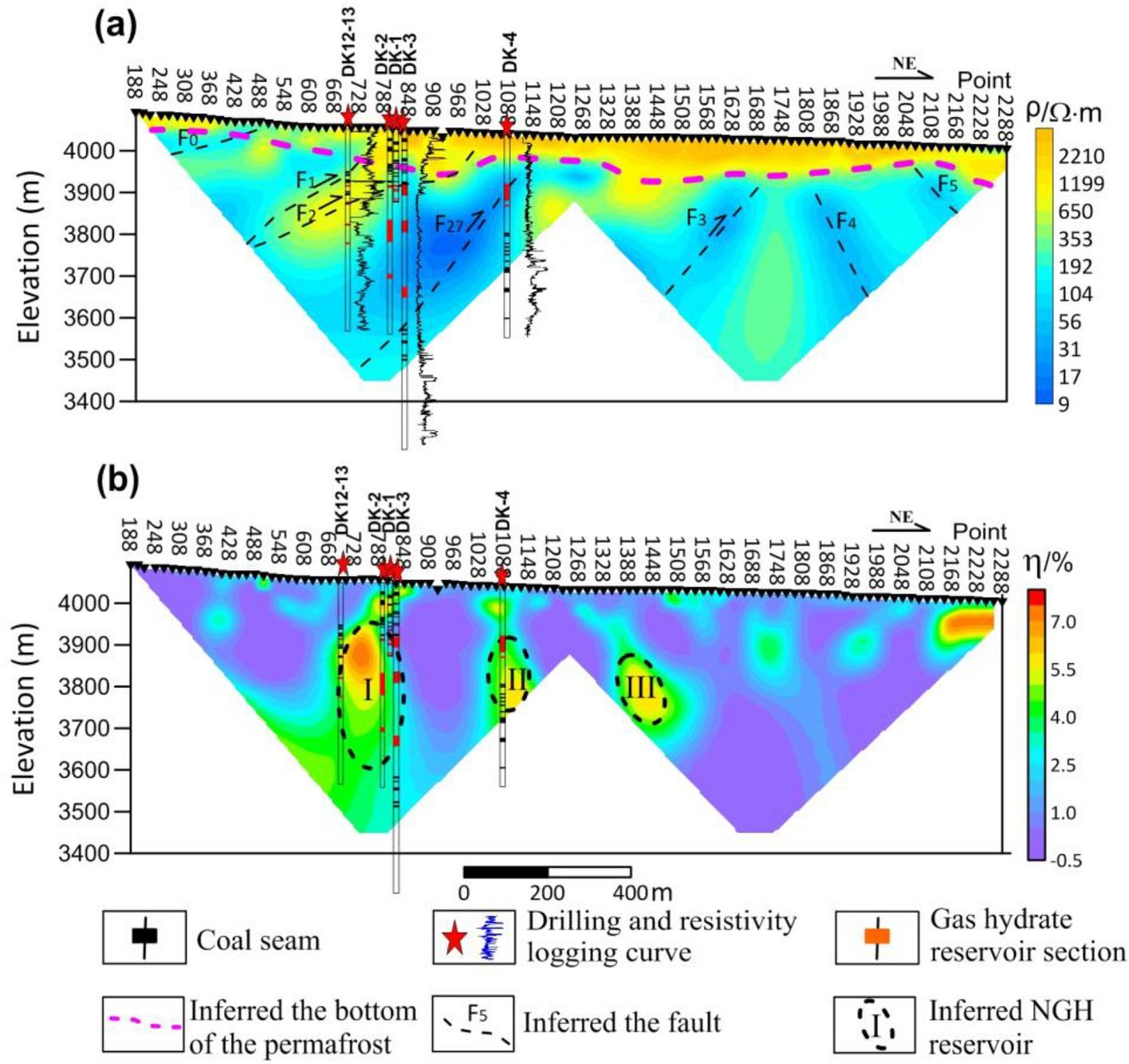

Inferences from well logs and inversion sections of MTIP data. (a) Section of two-dimensional inversion resistivity; (b) Section of two-dimensional inversion polarizability.
