From: Mycobacterium tuberculosis/Mycobacterium bovis triggered different variations in lipid composition of Bovine Alveolar Macrophages

Figure 7

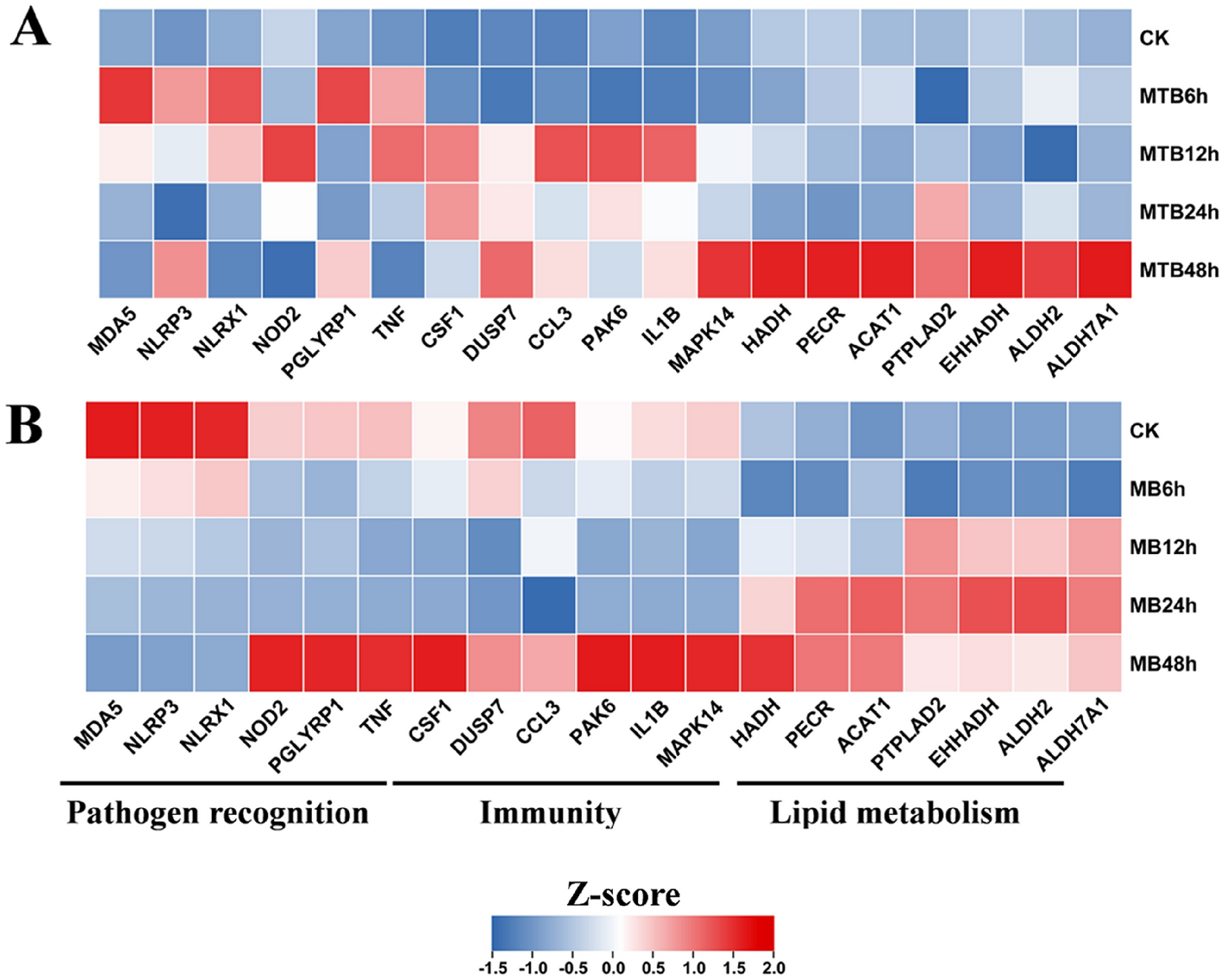

Estimation of the genes relevant to immunity, pathogen recognition and lipid metabolisms in BAM following MTB or MB challenges at time course. (A) Heatmap displays the expression levels of genes relevant to immunity, pathogen recognition and lipid metabolisms in MTB-infected BAM at time course. (B) The expression levels of representative genes in MB-infected BAM at time course. Scale represents the Z-score of normalized Foldchange value of each genes compared to CK (0 h infection). The up- and down-regulated genes are shown in red and blue, respectively. Two-tailed t tests are used for all statistical analysis, P < 0.05.
