Figure 7
From: Dispersion and stability mechanism of Pt nanoparticles on transition-metal oxides

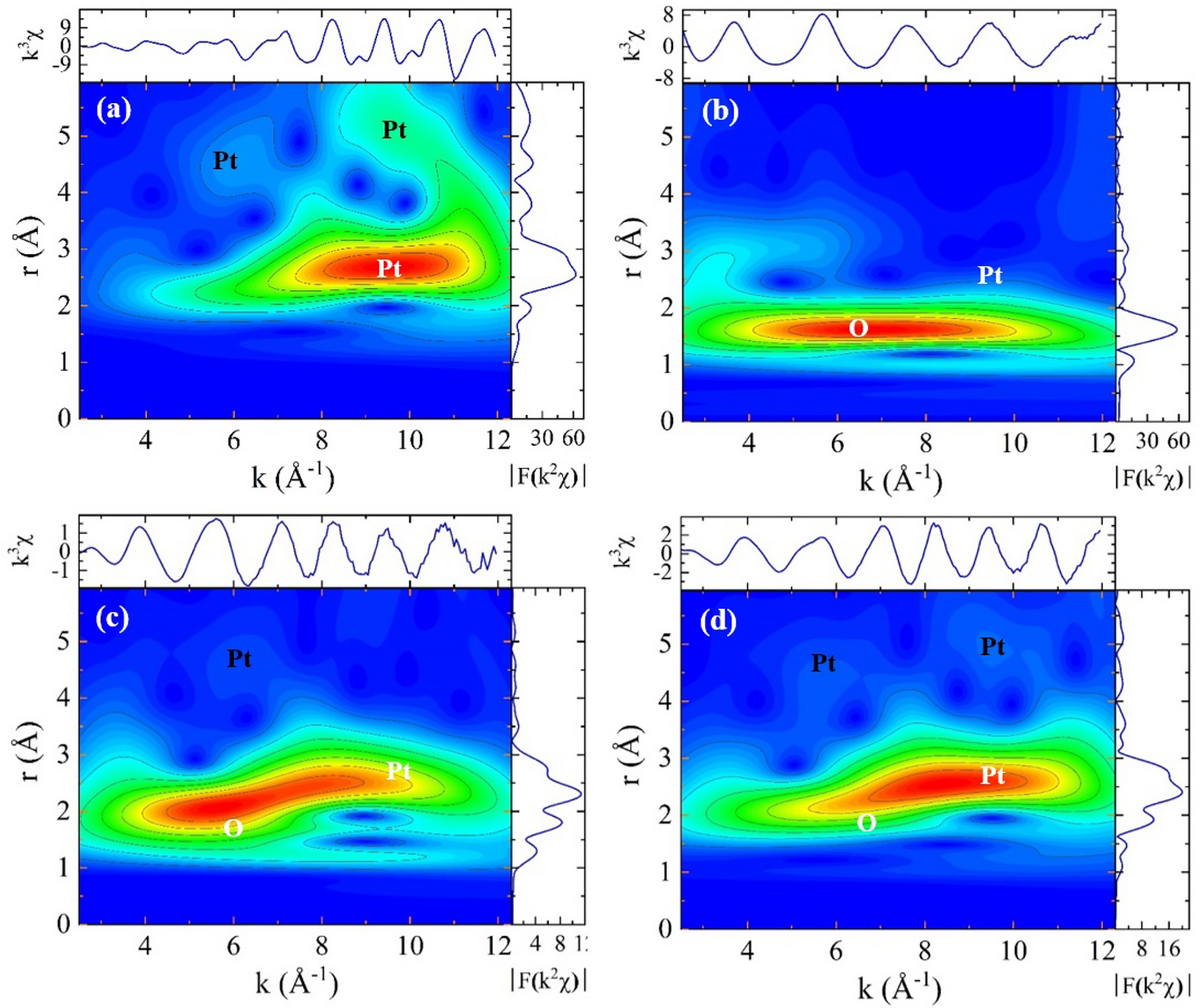

At Pt L3 edge, WT-EXAFS of (a) Pt foil at RT, (b) RT, (c) 200 °C, and (d) RTc of H2O2-Pt/Ti–FS. The top and the right data are the measured EXAFS in the k-space and FT-EXAFS in the r-space, respectively.
