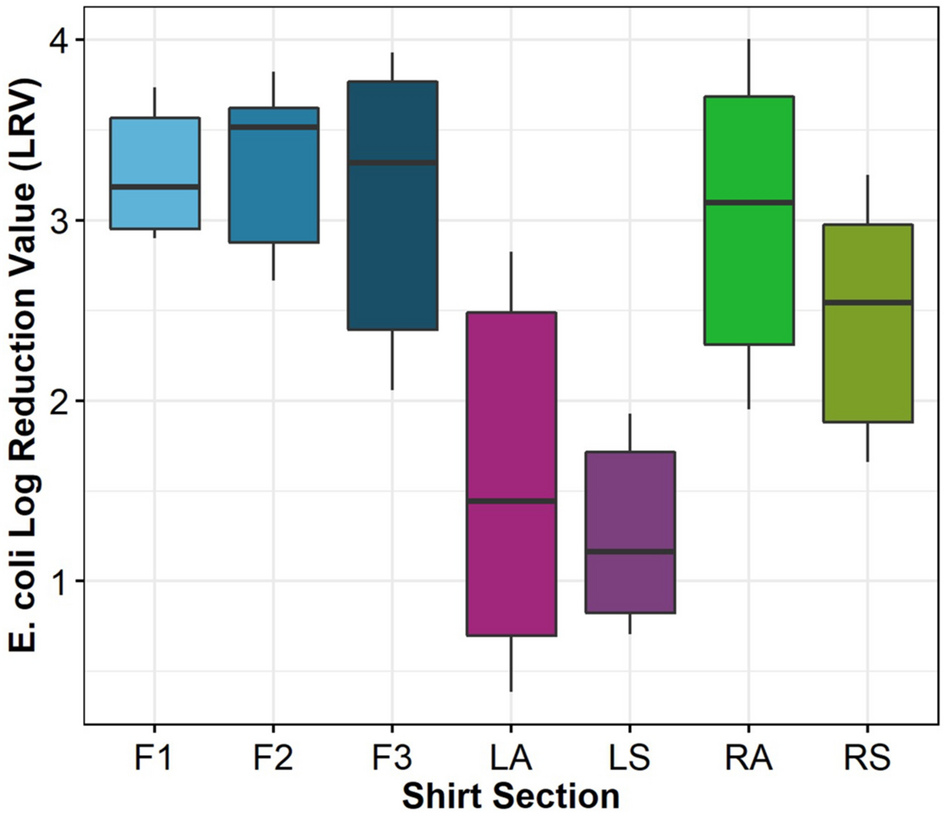

Figure 7
From: Immersive ultraviolet disinfection of E. coli and MS2 phage on woven cotton textiles
E. coli LRV for each inoculation location on hanging T-shirts (n = 3). Right Side (RS) and Right Arm (RA); Left Sleeve (LS) and Left Armpit (LA); Front 1,2,3 (F1, F2, and F3).
