Figure 1 | Scientific Reports

Figure 1

From: Seasonal variation in bull semen quality demonstrates there are heat-sensitive and heat-tolerant bulls

Figure 1

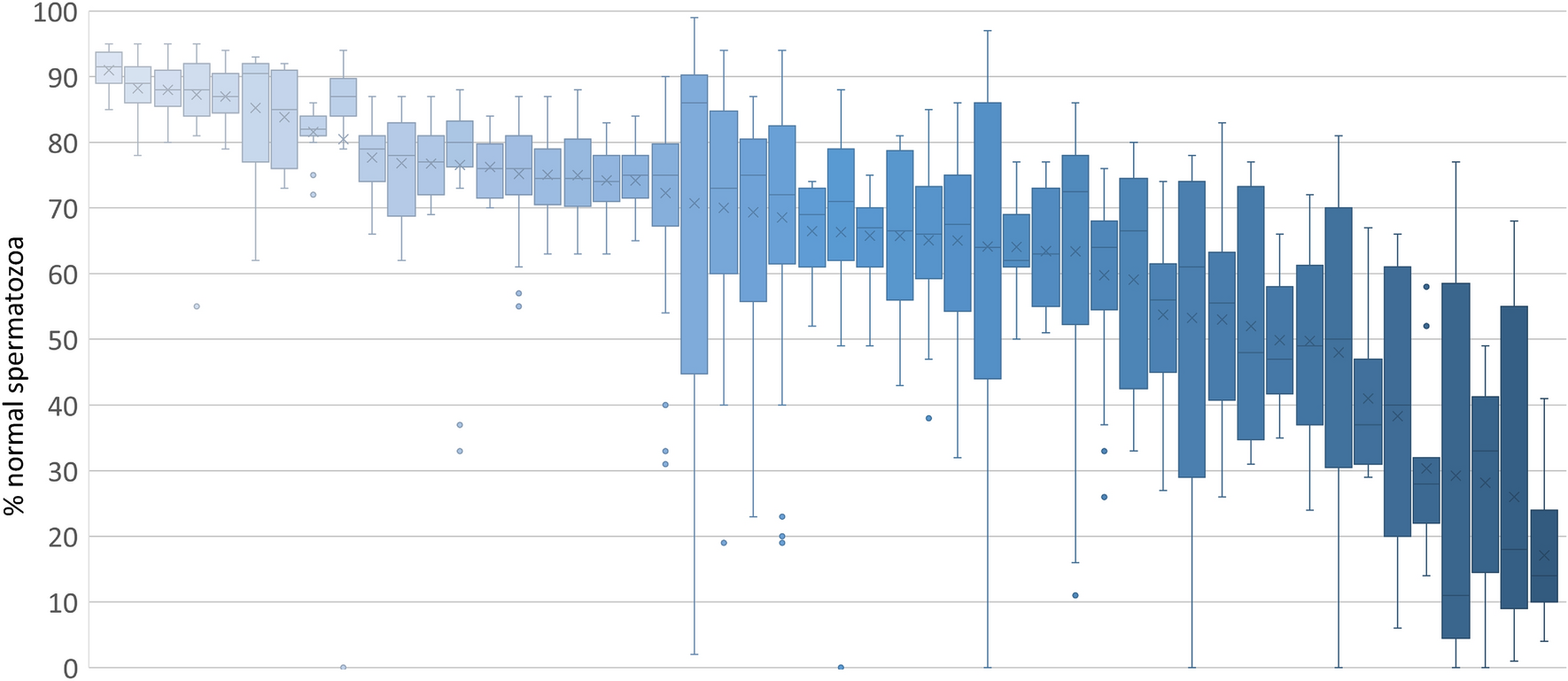

Changes in sperm normal forms. Semen samples were taken from bulls via electroejaculation and the percentage sperm normal forms were counted. The data show a box and whiskers plot consisting of 50 bulls, each of which had at least 5 different ejaculates across a minimum one month. Each box and whiskers plot represents an individual Bull showing the median, upper and lower quartile range. Outliers are represented by individual dots.
