Figure 5
From: Measurement of focal light spot at single-photon level with silicon photomultipliers

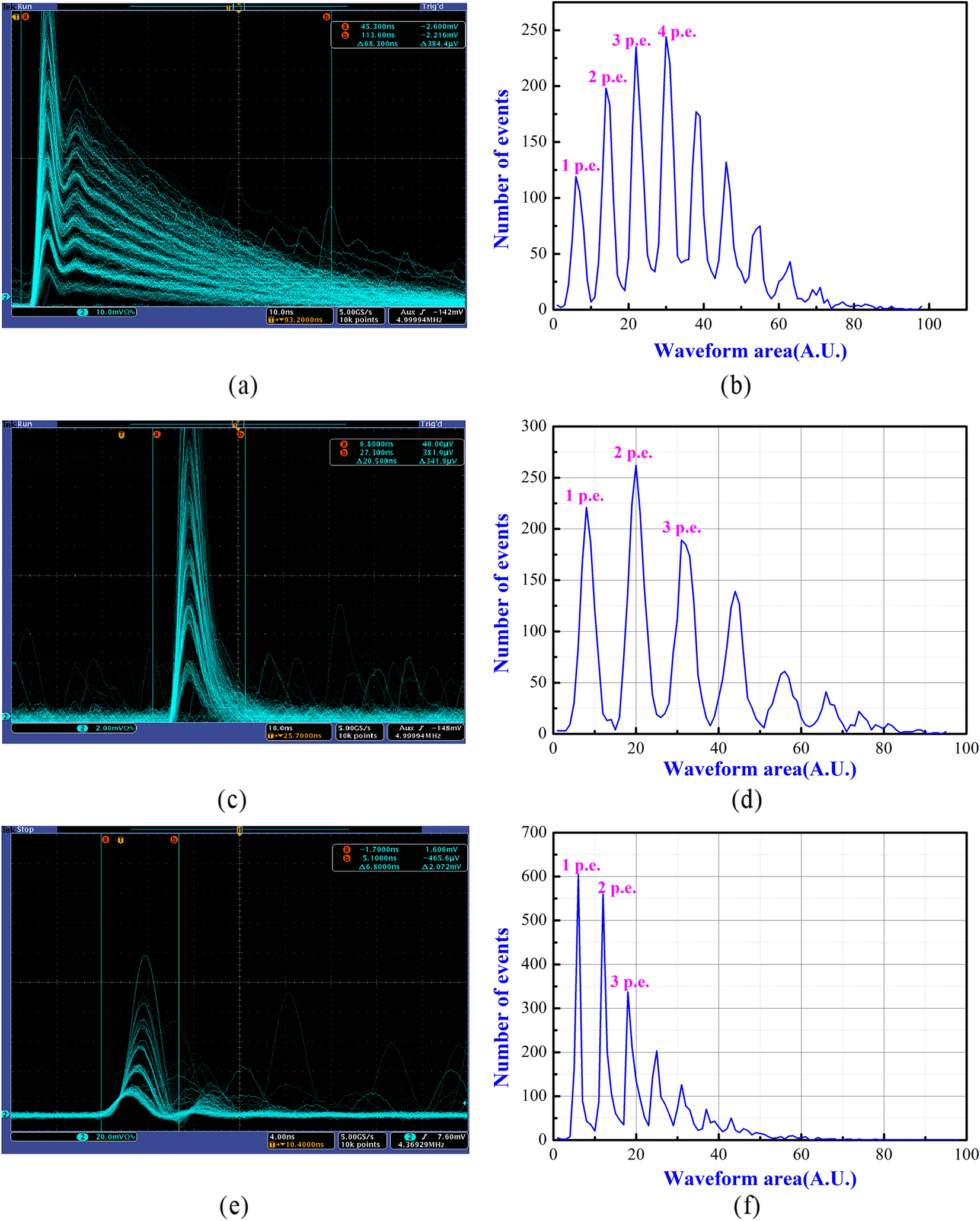

Oscillograph capture and the photon number resolution spectra of the SiPMs employed in this work. (a) Oscillograph showing the avalanche pulses from the FBK SiPM (model = NUV-HD-LF) under the irradiation of the focal spot; (b) Photon number resolution (histogram of the waveform area) spectrum of the FBK SiPM; (c) Waveforms of the avalanche pulses from the NDL SiPM (model = EQR1011-1010C-T) under the irradiation of the focal spot; (d) Photon number resolution spectrum of the NDL SiPM; (e) Oscillograph showing the avalanche pulses from the Hamamatsu SiPM (model = S12571-010C) under the irradiation of the focal spot; (f) Photon number resolution spectrum of the Hamamatsu SiPM.
