From: Spatiotemporal changes of bacterial communities during a cyanobacterial bloom in a subtropical water source reservoir ecosystem in China

Figure 2

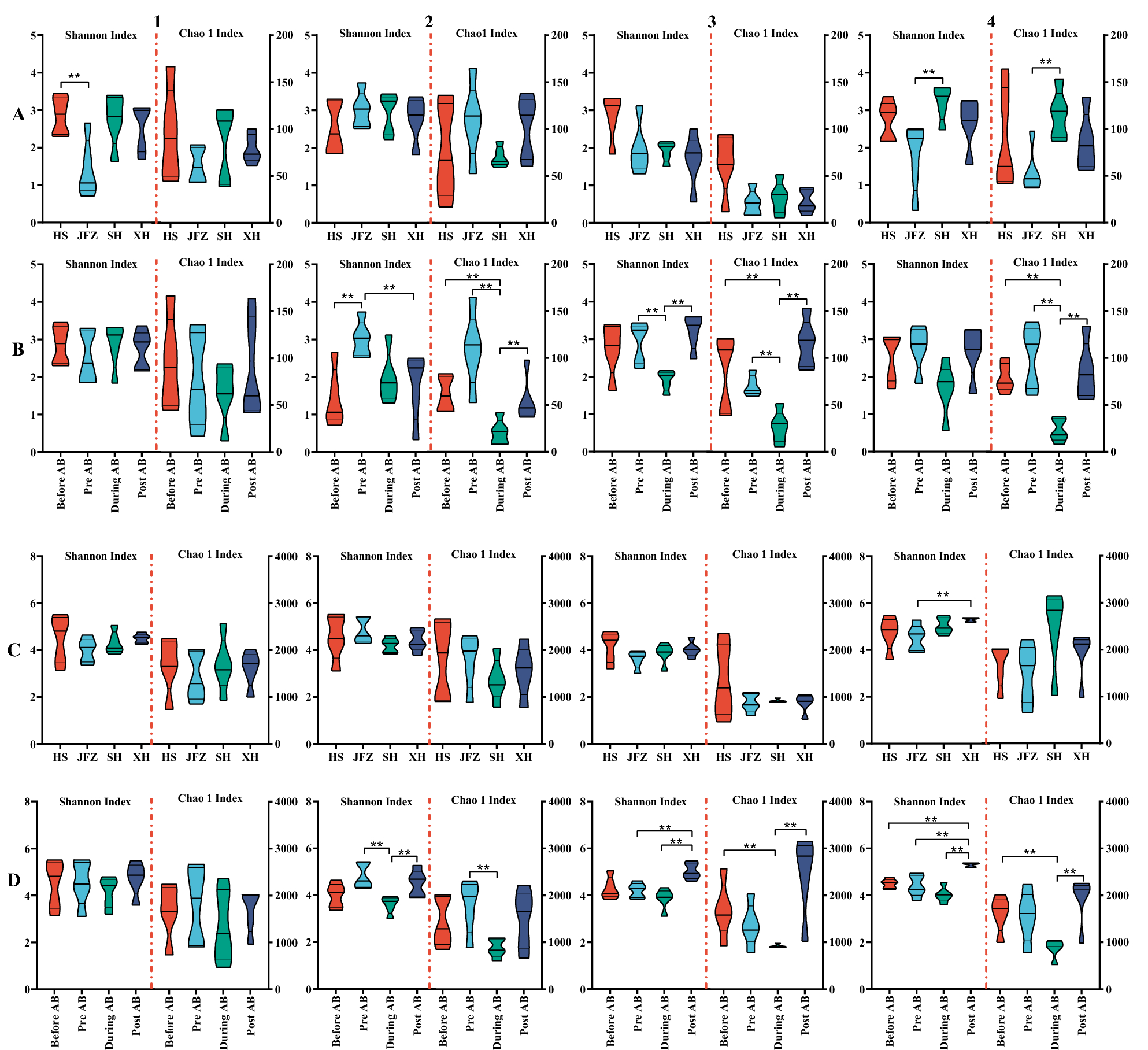

Comparisons of alpha-diversity estimators of Shannon and Chao1 on cyanobacterial (A1–A4 and B1–B4) and bacterial communities (C1–C4 and D1–D4). Figures of (A1–A4) illustrated cyanobacterial community diversity amongst different rivers at the same phases of Before AB (A1), Pre AB (A2), During AB (A3), and Post AB (A4), respectively; and (B1-B4) showed cyanobacterial community diversity of HS (B1), JFZ (B2), SH (B3), and XH (B4) at different bloom phases. (C1–C4) and (D1–D4) represented comparisons of bacterial communities equivalent to (A1–A4) and (B1–B4).
