Figure 9
From: Influence of root distribution patterns on soil dynamic characteristics

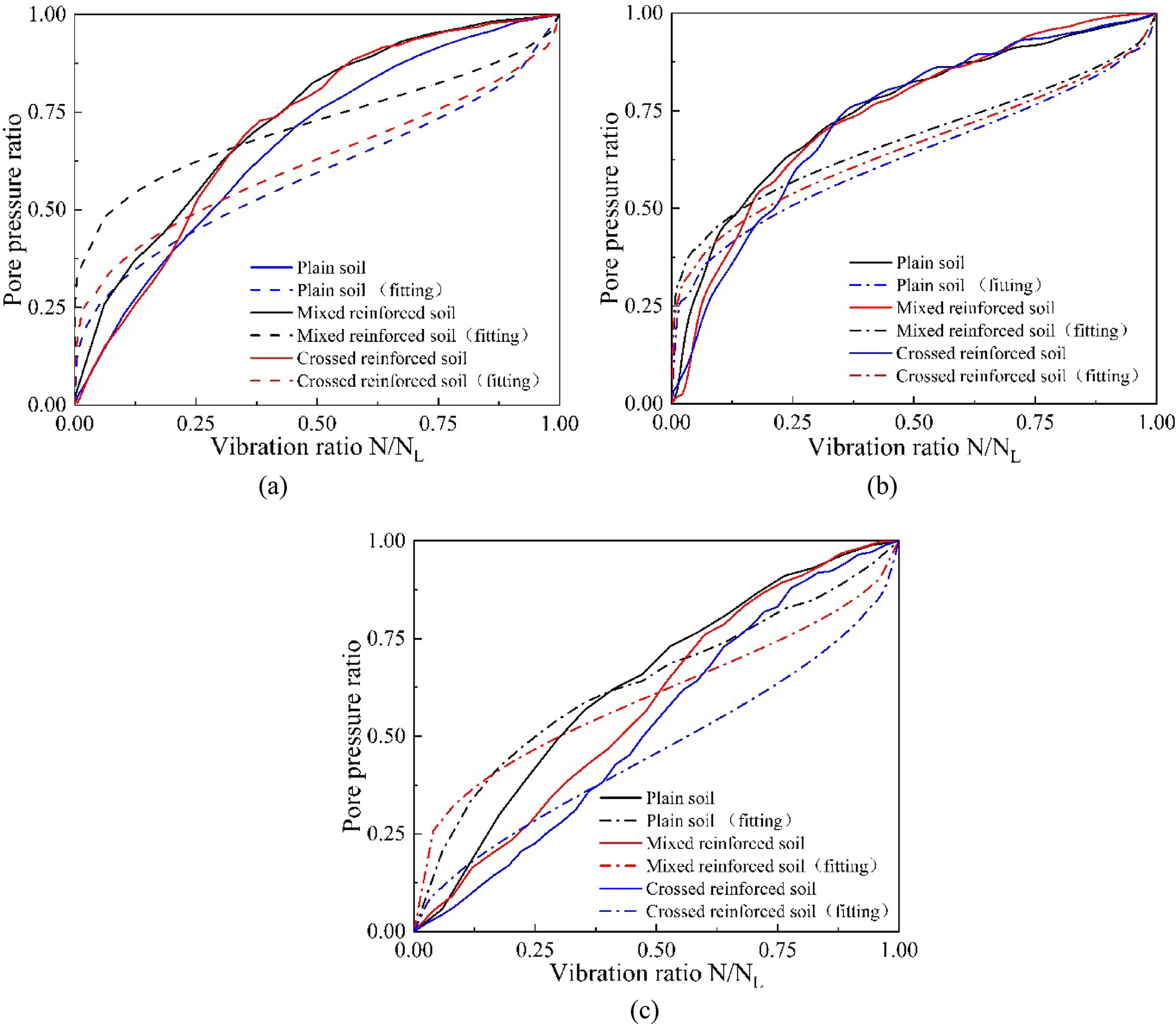

Relationship between pore pressure ratio and vibration ratio computed by Seed model: (a) dynamic stress amplitude of 15 kPa, (b) dynamic stress amplitude of 20 kPa, and (c) dynamic stress amplitude of 25 kPa.
