From: Breast cancer patient characterisation and visualisation using deep learning and fisher information networks

Figure 5

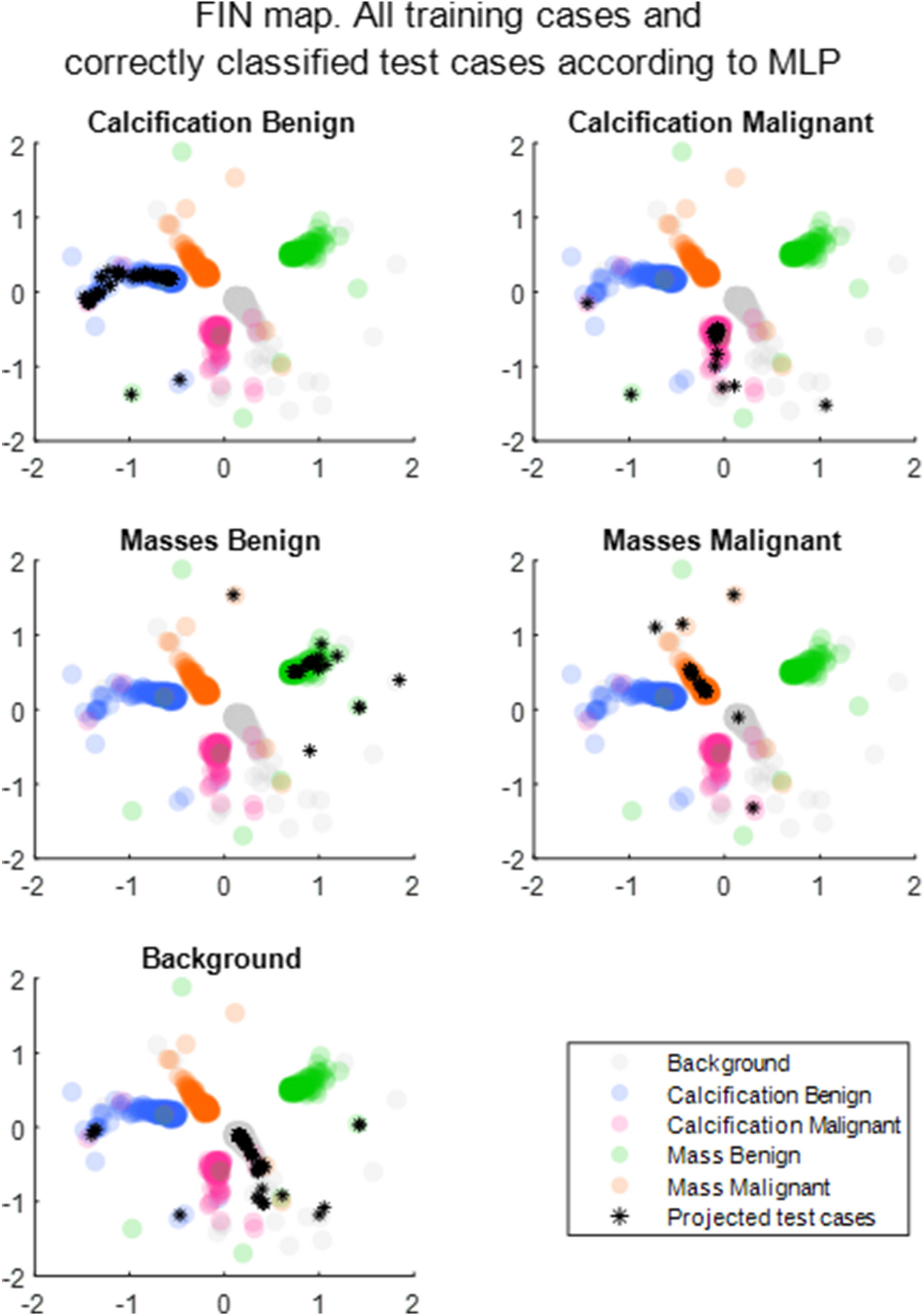

FIN map: all training cases and correctly classified test cases according to the MLP. Correctly classified test cases (black stars) projected into the trained FIN embedding, where every case is represented by a point—transparency was added mainly to allow for overlapping cases to be seen, and as a result, areas with the majority of cases in one class will display a more solid colour.
