Figure 2
From: A processing-in-pixel-in-memory paradigm for resource-constrained TinyML applications

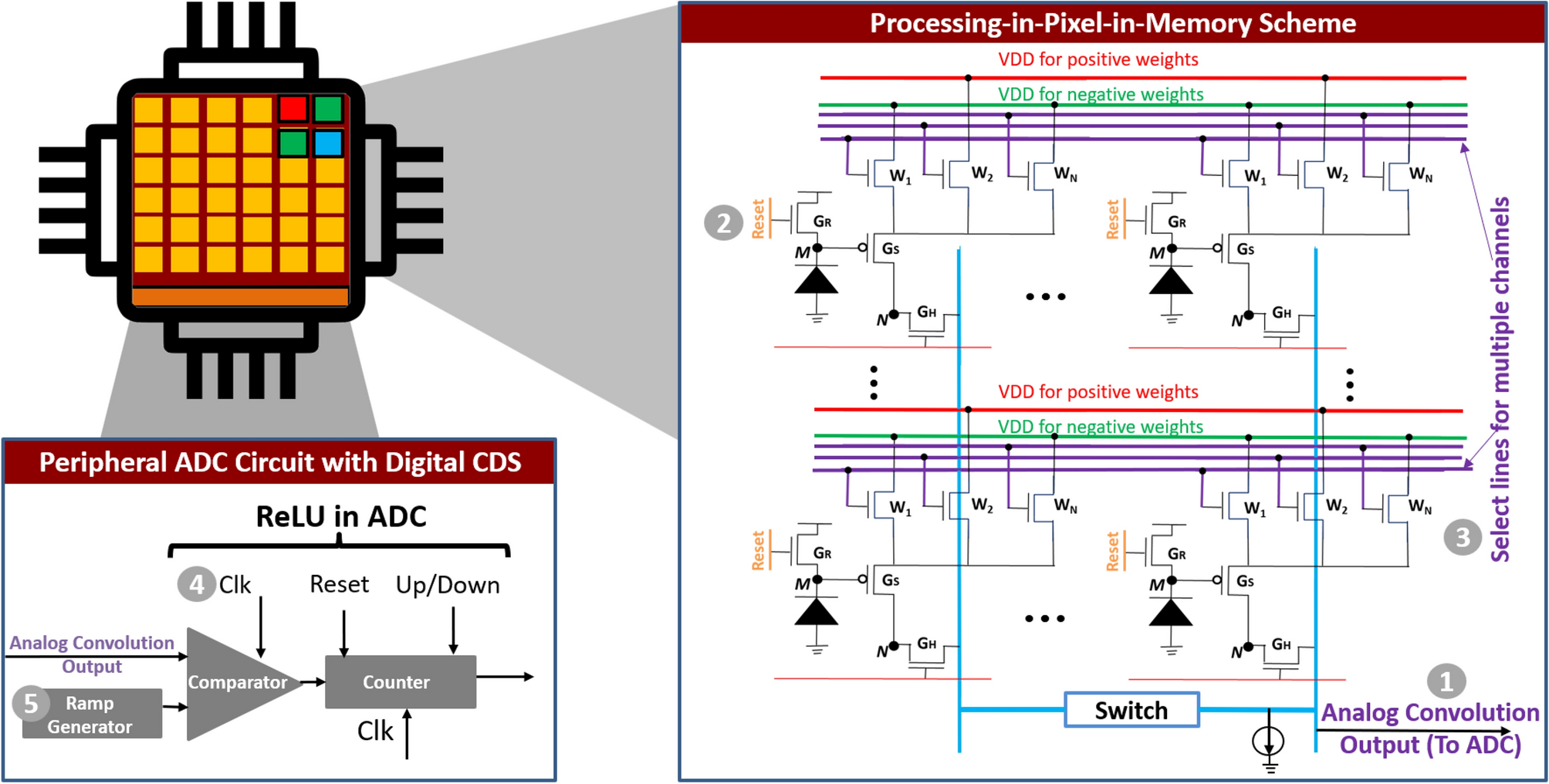

Proposed circuit techniques based on presented P2M scheme capable of mapping all computational aspects for the first few layers of a modern CNN layer within CIS pixel arrays.
