Figure 4
From: A processing-in-pixel-in-memory paradigm for resource-constrained TinyML applications

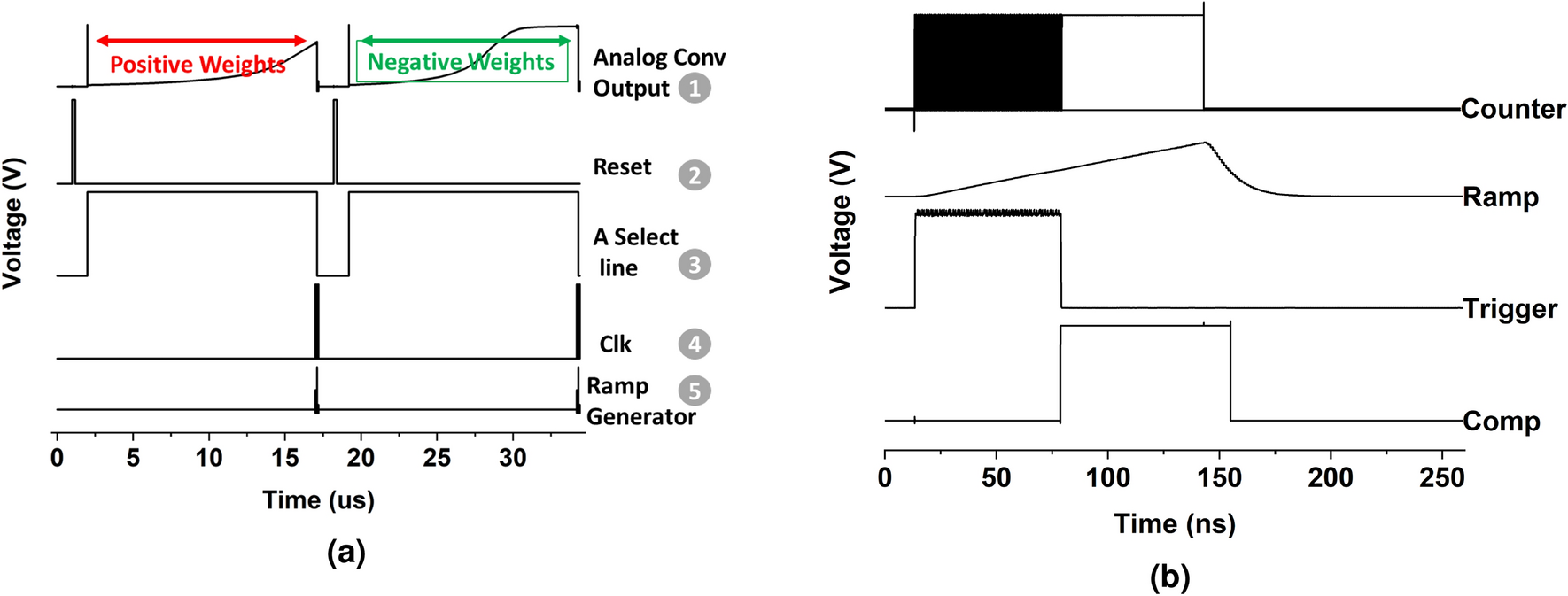

(a) A typical timing waveform, showing double sampling (one for positive and other for negative) weights. The numerical labels in the figure correspond to the numerical label in the circuit shown in Fig. 2. (b) Typical timing waveform for the SS-ADC showing comparator output (Comp), counter enable (trigger), ramp generator output, and counter clock (Counter).
