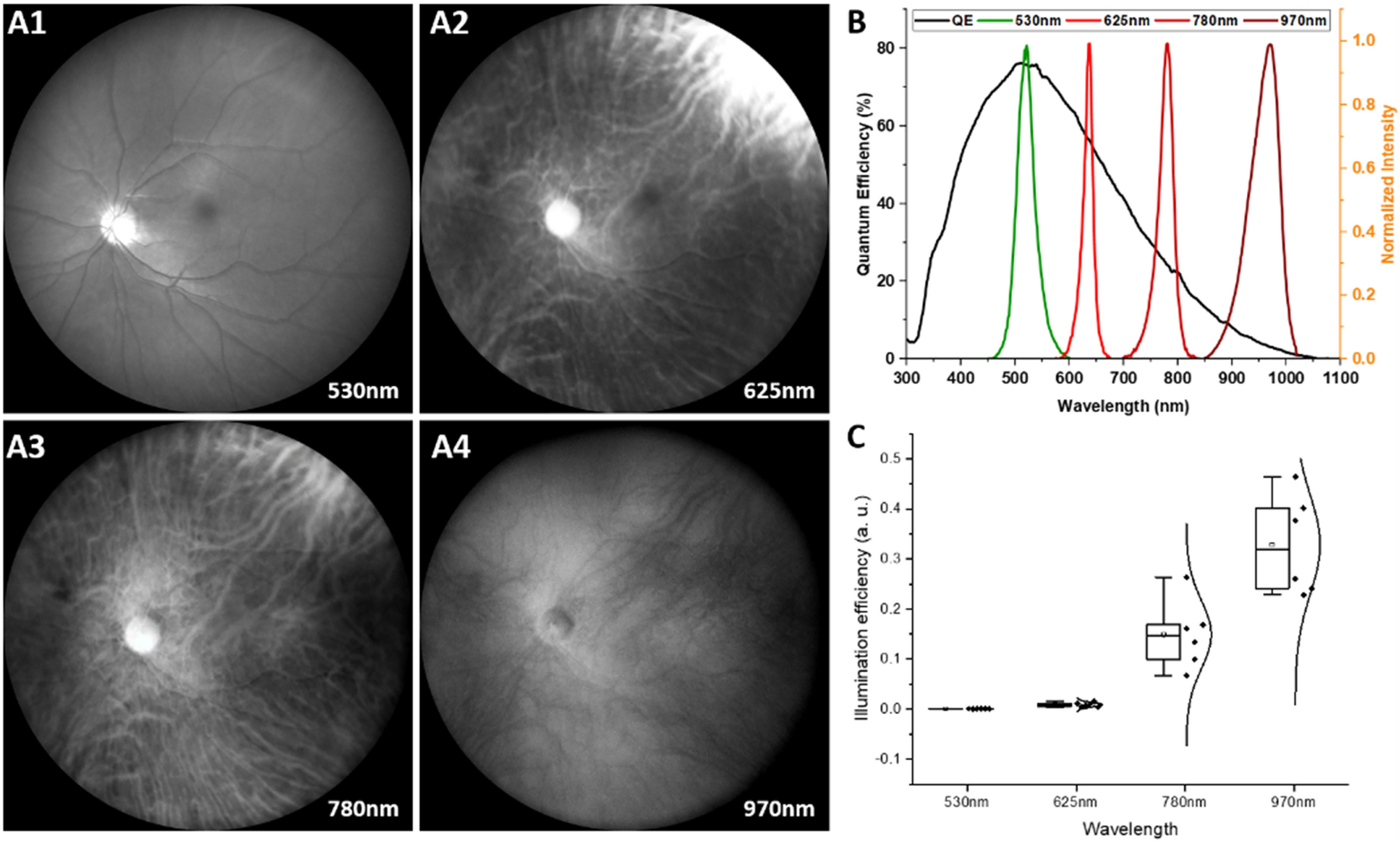

Figure 2

(A) Representative wide-field multispectral fundus images from 530 nm (A1), 625 nm (A2), 780 nm (A3), and 970 nm (A4) wavelength. (B) Light source spectrums and camera quantum efficiency. (C) Illumination efficiency from multiple wavelengths.
