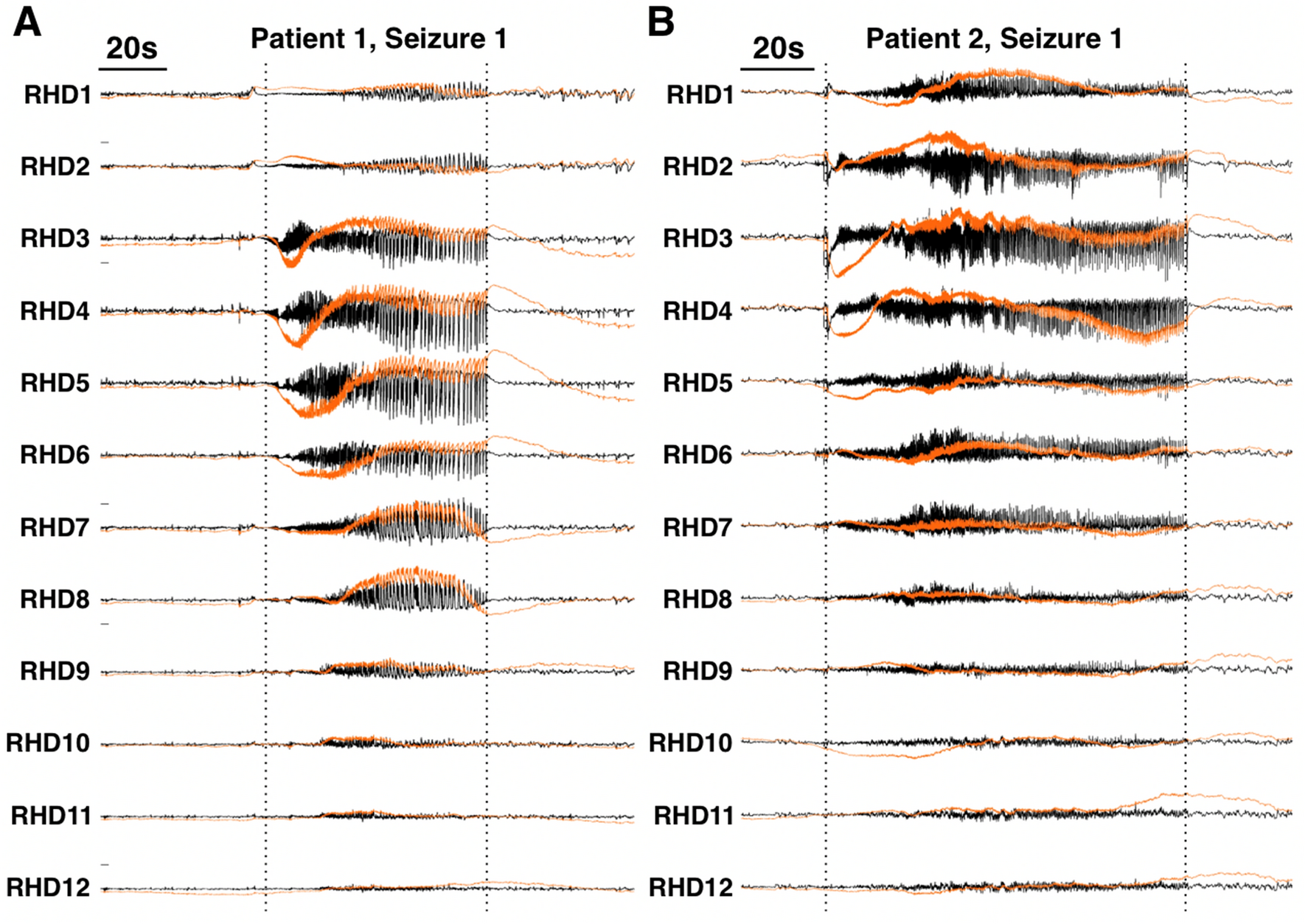

Inverse filter reconstruction of intracranial ictal recordings for two temporal lobe epilepsy patients. Black traces are the raw recordings, and orange traces are the inverse filtered signals. In both patients, large amplitude, low frequency shifts are present at the start of the seizure. RHD right hippocampal depth. Vertical dotted lines indicate seizure onsets and offsets.
